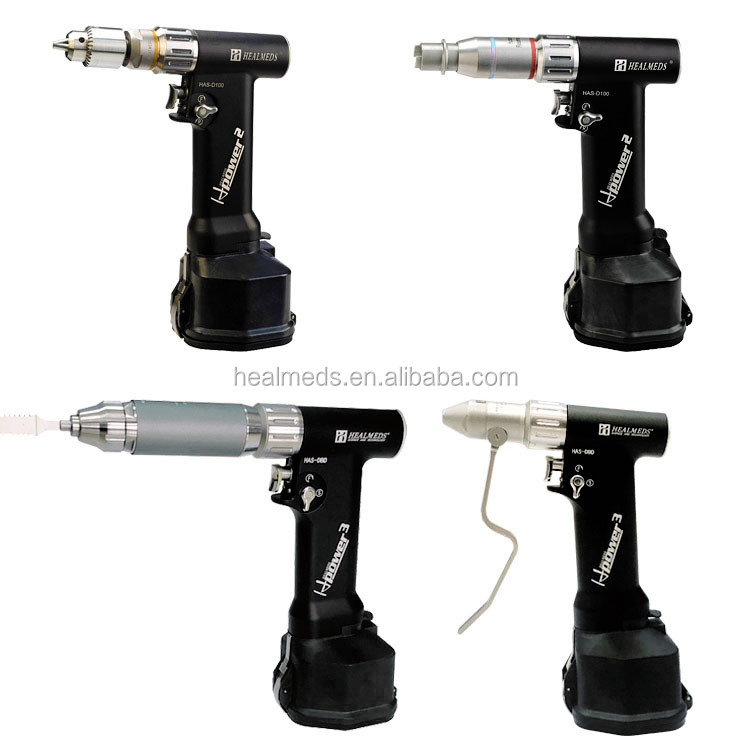

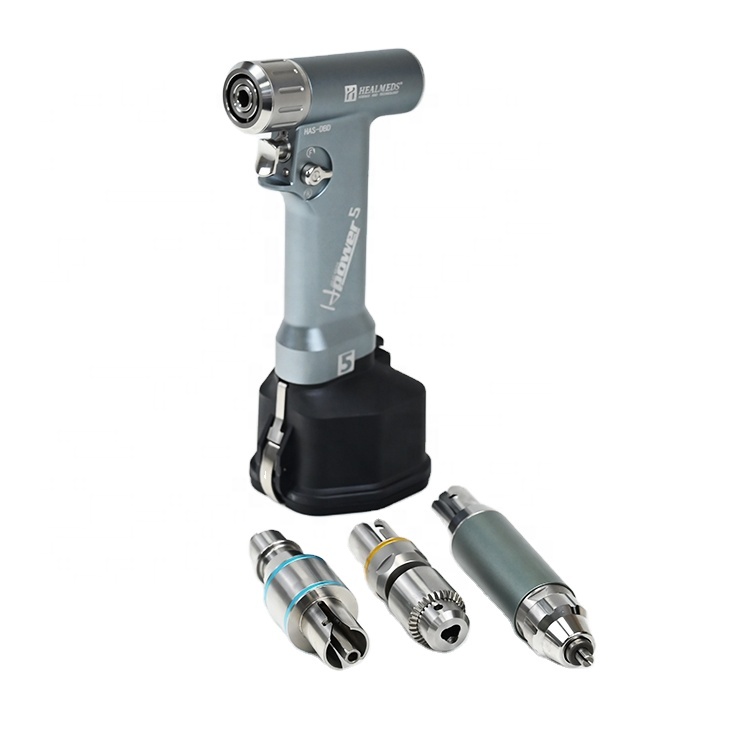

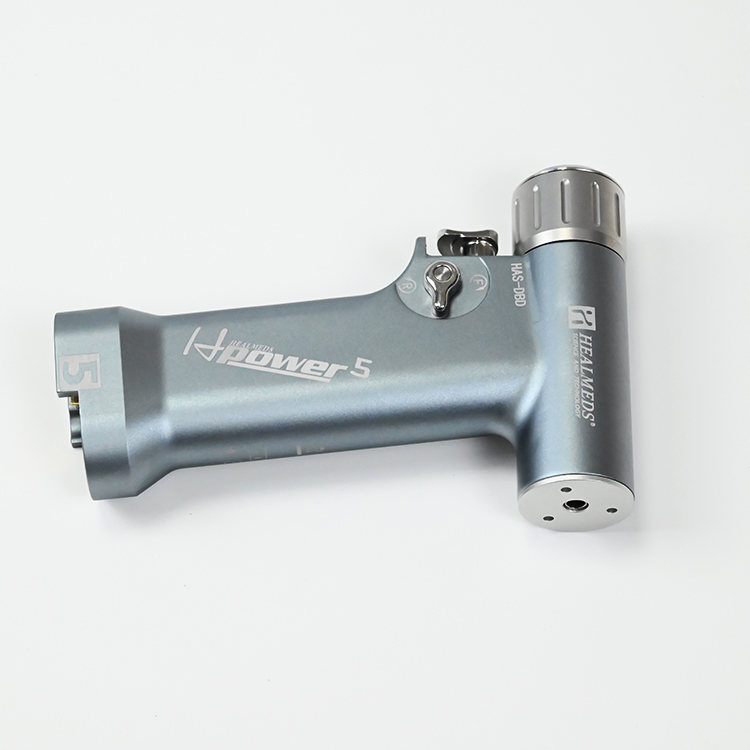

Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone

Send Inquiry

Product Description

Specifications

Item	Value

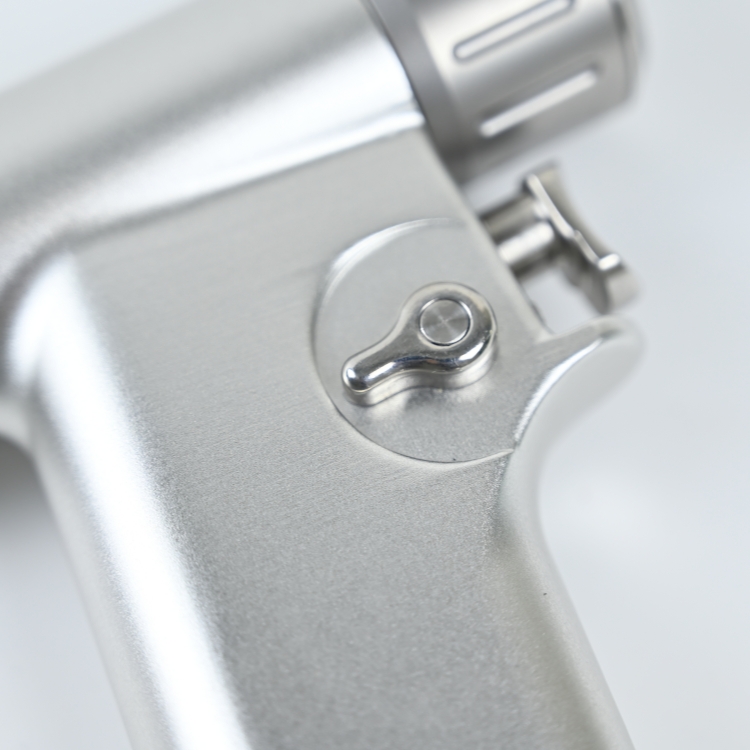

Multi-Function Handpiece	Equipped with brushless DC canulated motor imported from USA

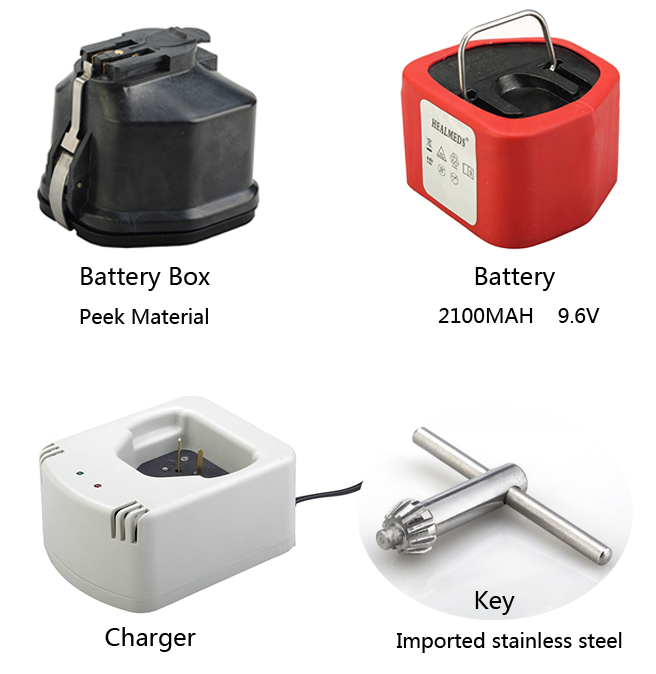

Battery	Ni-MH, 2100MAH, Voltage: 9.6V
Battery Box	Peek material, sterilized > 3000 times
Charger	Convenient design for long battery life
Transfer Shield	Imported stainless steel 304

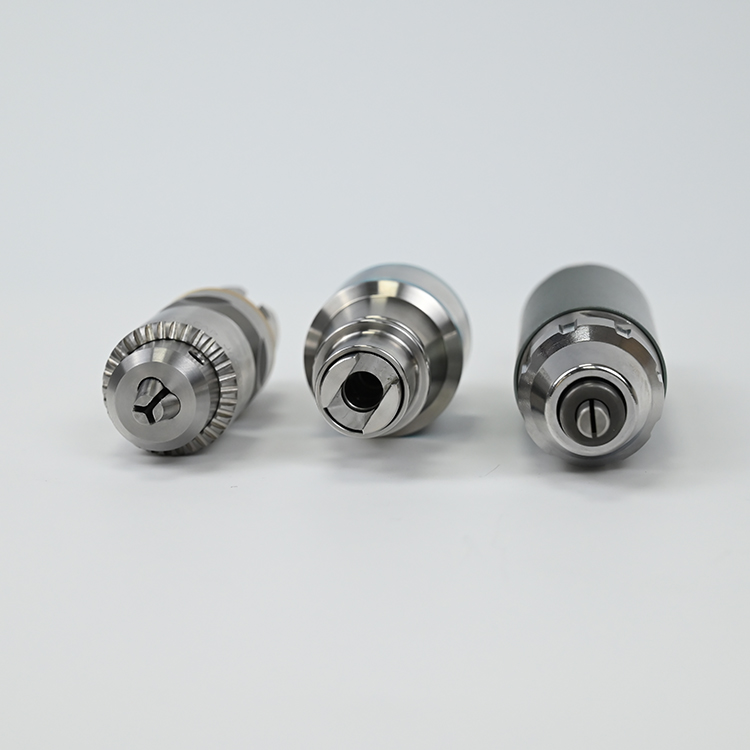

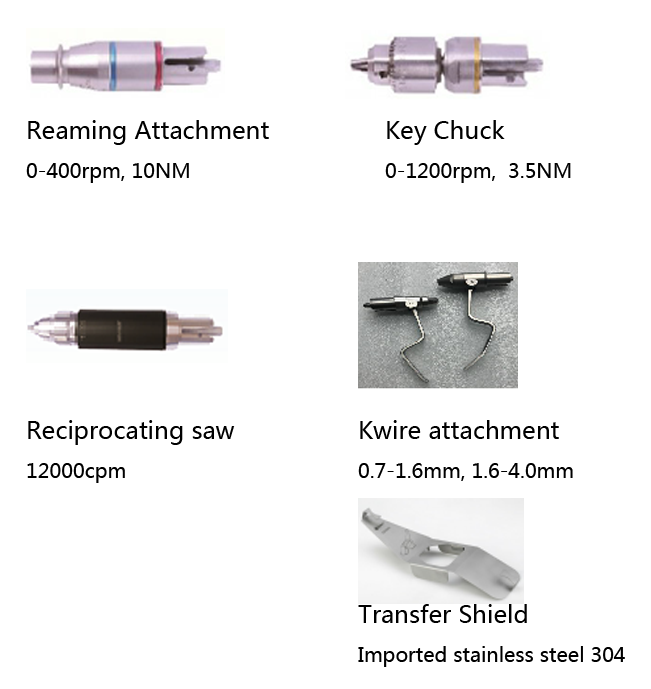

Key Chuck	Speed 0-1200rpm, Torque 3.5NM
Reaming Attachment	Speed 0-400rpm, Torque 10NM
K-wire Attachment	0.7-1.6mm / 1.6-4.0mm
Reciprocating Saw	Frequency: 0-12000cpm
Sterilizing Box	445275215mm, 4.6Kg

Key Features

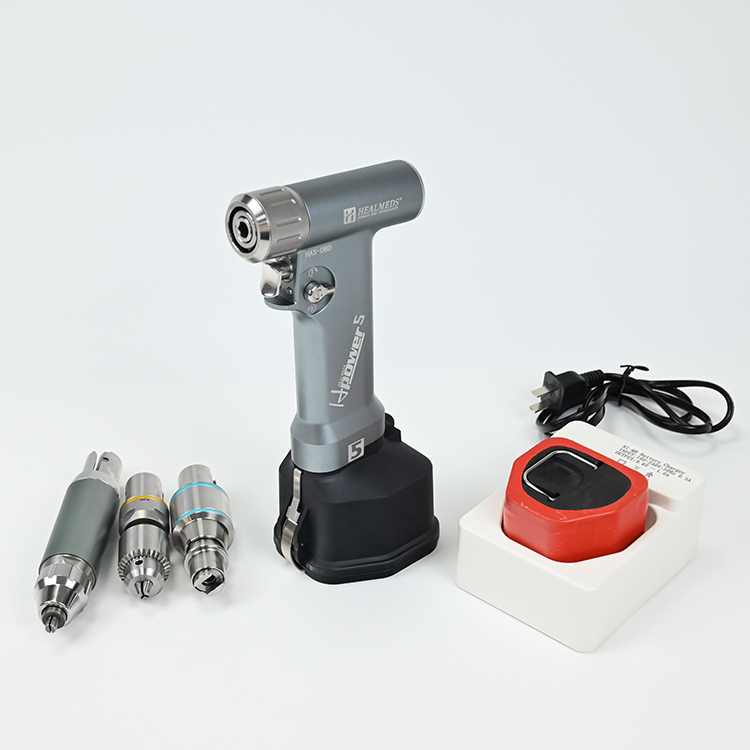

Standard Configuration

Warranty

Main Machine & Motor: 2 years warranty.

Battery & Consumables: 3 months warranty.

Operation Notes

Sterilize temperature must be ≤ 135°C (Improved type ≤ 155°C) to prevent motor damage.
Normal bone drill holds bits < 6mm. Acetabulum reaming drill torque allows for effective operation.
Remove battery from the handpiece after surgery to avoid automatic discharge and prolong battery life.
Battery is NOT autoclavable.
Cranial burs must be cleaned immediately after surgery to prevent blood adhesion.
Keep the battery compartment dry after sterilization.

Frequently Asked Questions (FAQ)

Q: Is the electric surgical drill autoclavable?

A: Yes, the whole unit is autoclavable at 135°C (or up to 155°C for the improved model), but please note the battery cannot be sterilized.

Q: What is the battery capacity?

A: The system comes with a high-capacity 2100mAh Ni-MH battery, 9.6V.

Q: How do I maintain the battery life?

A: Please ensure the battery is removed from the handpiece after each surgery to prevent minor automatic discharge and maintain optimal performance.

Q: Can this system be used for different surgical procedures?

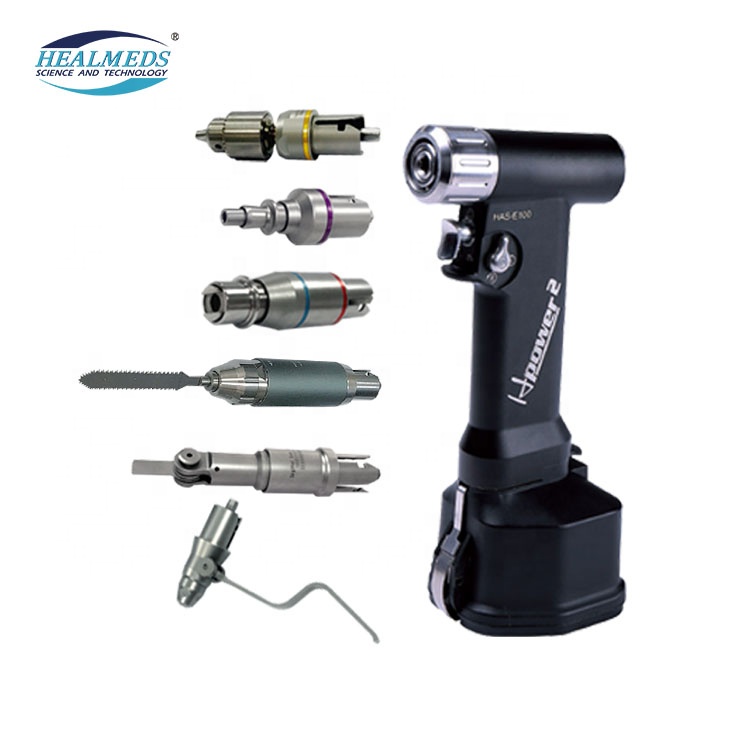

A: Yes, it is a multi-function system that supports various attachments, including key chuck, reaming, K-wire, and reciprocating saw functions.

Q: What is the warranty period for this equipment?

A: We offer a 2-year warranty for the main machine and motor, and a 3-month warranty for batteries and other fast-consuming items.
