Autoclavable orthopedic drill and saw set micro bone mini electric veterinary surgical instruments for dog (Mini Type)
We provide a comprehensive, one-stop solution for veterinary clinics and animal hospitals worldwide, specializing in professional veterinary power tools, implants, and surgical equipment.
| Description | Details |
|---|---|
| Properties | Veterinary Surgical Instruments |
| Type | Orthopedic drill and saw, animal products |
| Usage | Veterinary instrument anatomy appliances |
| Instrument classification | Class II |
| Warranty | 2 years |
| Input Voltage | 100V-250V |
| Battery | Lithium battery |

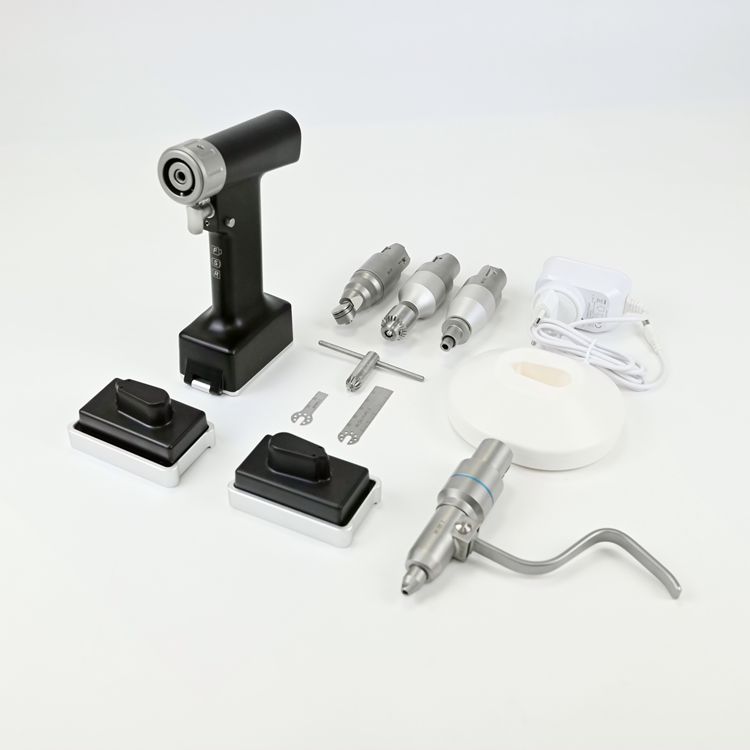

| No. | Accessory | Qty. | Data |
|---|---|---|---|
| 1 | Small Handpiece (Aluminum Alloy) | 1 | Brushless motor, 0.8kg, autoclavable up to 135℃ |
| 2 | Battery Rechargeable | 2 | 7.2V, 1800mah Ni-MH, 30 min duration |
| 3 | Charger | 1 | 110-220V, Global compatibility |
| 4 | Jacobs drill chuck | 1 | 0-1300rpm, torque 2.9N.m, gripping ≤4mm |
| 5 | Small oscillating Saw | 1 | 0-16000cpm, for joint surgeries |
| 6 | Small saw blade | 2 | 7 star blades, imported material |
| 7 | Small AO drill chuck | 1 | For drilling holes and plate fixation |
| 8 | Small K-Wire pin driver | 1 | Holding kirschner needle pin |
| 9 | Sterilizing channel | 1 | Autoclavable |
| 10 | Aluminum packing case | 1 | 445*270*150mm, Weight: 1kg |

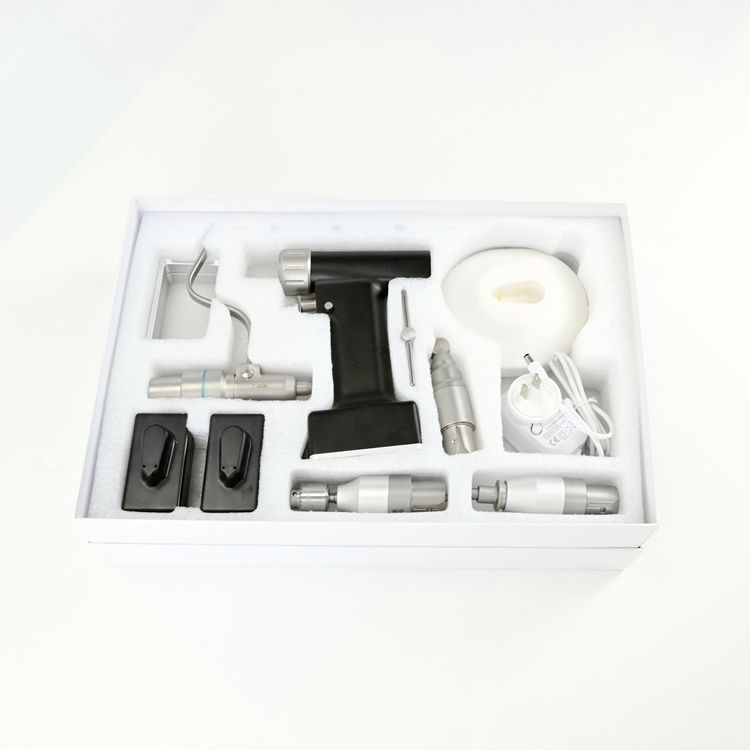

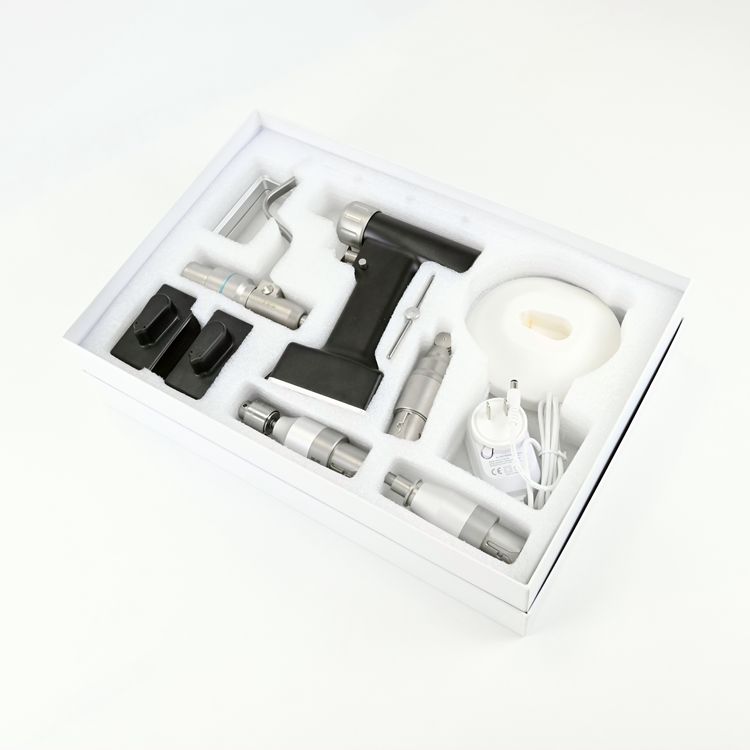

Packaging: Aluminum case, then packed into an export carton (or as per client's requirements).
The small handpiece is designed to be autoclavable up to 135℃.
The 7.2V rechargeable battery can last for approximately 30 minutes of continuous operation after being fully charged.
Yes, the set includes different attachments like a Jacobs drill chuck, oscillating saw, and AO drill chuck, suitable for joint, trauma, and other orthopedic surgeries.
Yes, the charger is universal, covering 110-220V and is compatible with EU, UK, American, and AU plug types.
The device is designed for low noise operation, with no-load noise levels ≤45dB.
