QSWTITAN Electric Bone Drill Saw Oscillating Saw Orthopedic Veterinary Medical Instrument Autoclavable
QSWTITAN Electric Bone Drill Saw Oscillating Saw Orthopedic Veterinary Medical Instrument Autoclavable
QSWTITAN Electric Bone Drill Saw Oscillating Saw Orthopedic Veterinary Medical Instrument Autoclavable
QSWTITAN Electric Bone Drill Saw Oscillating Saw Orthopedic Veterinary Medical Instrument Autoclavable
QSWTITAN Electric Bone Drill Saw Oscillating Saw Orthopedic Veterinary Medical Instrument Autoclavable
1 / 5
QSWTITAN Electric Bone Drill Saw Oscillating Saw Orthopedic Veterinary Medical Instrument Autoclavable
QSWTITAN Electric Bone Drill Saw Oscillating Saw Orthopedic Veterinary Medical Instrument Autoclavable
QSWTITAN Electric Bone Drill Saw Oscillating Saw Orthopedic Veterinary Medical Instrument Autoclavable
QSWTITAN Electric Bone Drill Saw Oscillating Saw Orthopedic Veterinary Medical Instrument Autoclavable
QSWTITAN Electric Bone Drill Saw Oscillating Saw Orthopedic Veterinary Medical Instrument Autoclavable

QSWTITAN Electric Bone Drill Saw Oscillating Saw Orthopedic Veterinary Medical Instrument Autoclavable

Send Inquiry

Product Description

Specification
Product:Orthopedic Power Saw
Main Material:Aluminum Alloy
MOQ:1set
Application:Orthopedic Surgical Instruments
Oscillations:0-18000CPM
Operation voltage:14.4V
Noise:≤63 dB
Battery capacity:1800mA
Charger Input Voltage:AC 220V, 50Hz or 110V, 60Hz
Host temperature rise:≤ 25°C
Swing:5°
Beat:0.05mm
Power consumption:200W
Charging Time:2.5-3 Hours
Can be sterilized up to:135°
Product Description
Product performance is reliable, economical, the handpiece free warranty 1 year.
The main engine has strong power and can collect high temperature and high pressure disinfection (Except batteries).

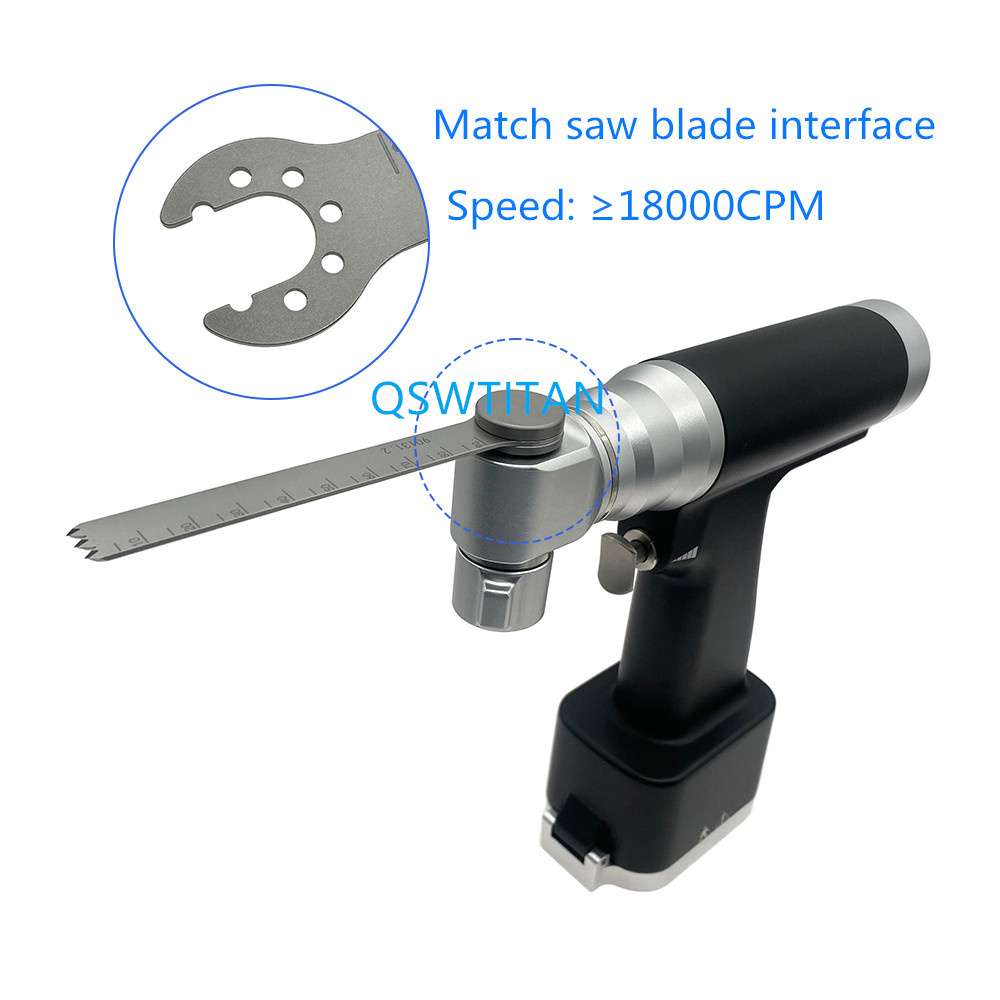

Used for knee surgery, mainly for osteotomy, the pendulum saw interface uses multi-point crimping, which can avoid causing resonance and ensure the cutting surface is flat.

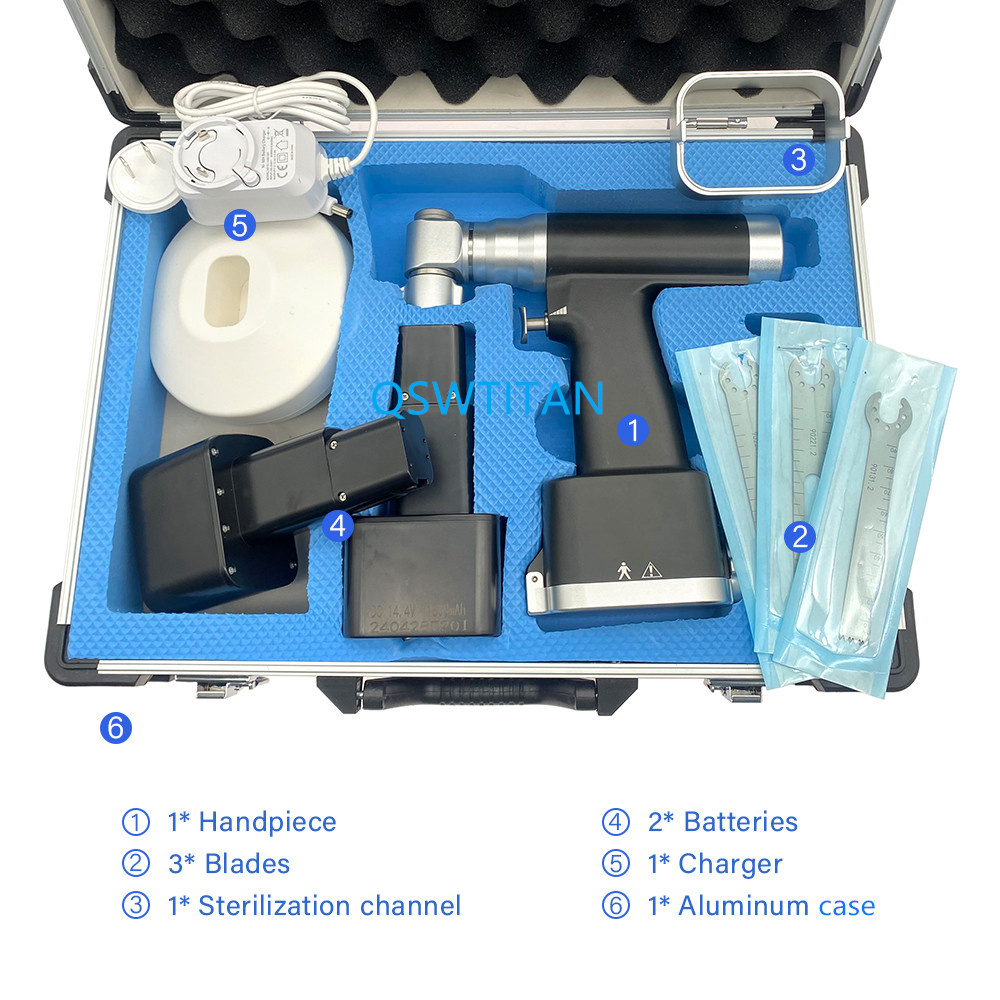

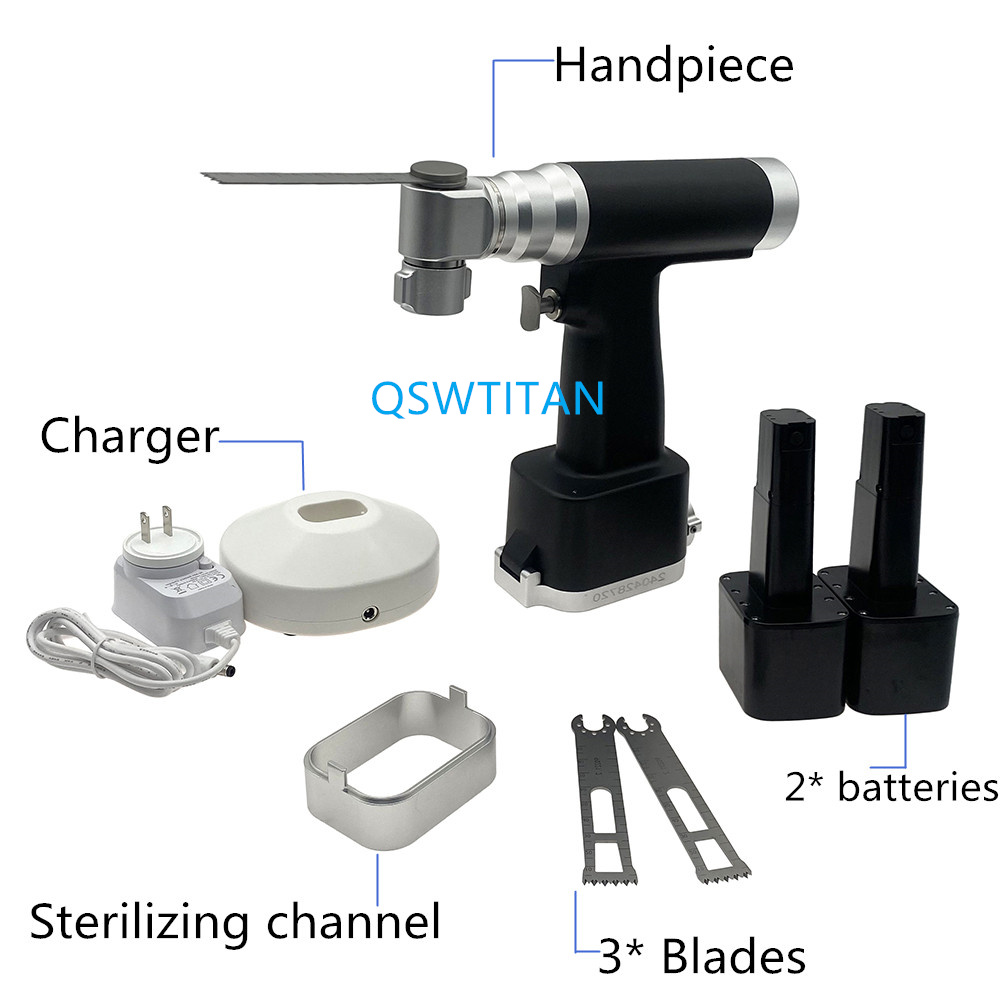

Standard Configuration
1* Handpiece
1* Sterilizing channel
3* Blades
2* batteries
1* Charger
1* Aluminum case or Sterilizing case (please choose)
Two choices, with aluminum box or with sterilized box, please choose before ordering, we will ship according to your choice, thank you!

With aluminum case

With sterilizer box

Scenes
Manufacturing & Facility
Frequently Asked Questions
What is the primary application of this power saw?
The Orthopedic Power Saw is primarily designed for orthopedic surgical instruments, specifically used in knee surgeries such as osteotomy.
Is the handpiece autoclavable?
Yes, the main engine can be sterilized under high temperature and high pressure up to 135°C. Please note that batteries must be removed before disinfection.
What is the warranty period for this product?
The handpiece comes with a 1-year free warranty, ensuring reliable and economical performance for your surgical needs.
How long does it take to fully charge the battery?
The charging time for the 1800mA battery is approximately 2.5 to 3 hours.
What is included in the standard configuration?
The standard set includes 1 handpiece, 1 sterilizing channel, 3 blades, 2 batteries, 1 charger, and your choice of either an aluminum case or a sterilizing case.
Does the saw produce a lot of noise during operation?
No, the noise level is controlled at ≤63 dB, and the design helps avoid resonance to ensure a flat cutting surface.
