| Product name | Model | Specification | Matrial | Code |
|---|---|---|---|---|
| Fibular Nail Mini nail | SWX-IIIS | 3.0×145 | Titanium Alloy | 15883145 |
Intramedullary nail: All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.
Features: All models are available. High Quality Raw Material, Advanced Facilities, Fine Procedures. High Productivity, Fast Delivery, Leading Level R & D Department, Experienced Marketing Manager, Professional Design Department, Accept OEM & ODM, Excellent After-sales Service.
| Product name | Model | Specification | Matrial | Code |
|---|---|---|---|---|

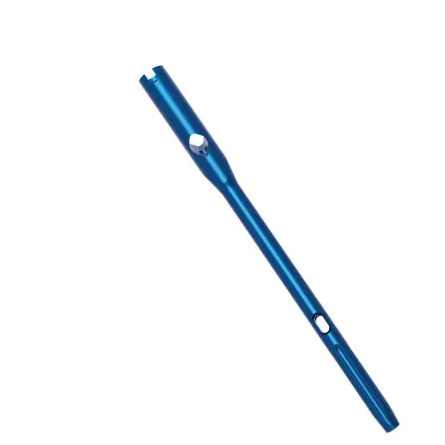

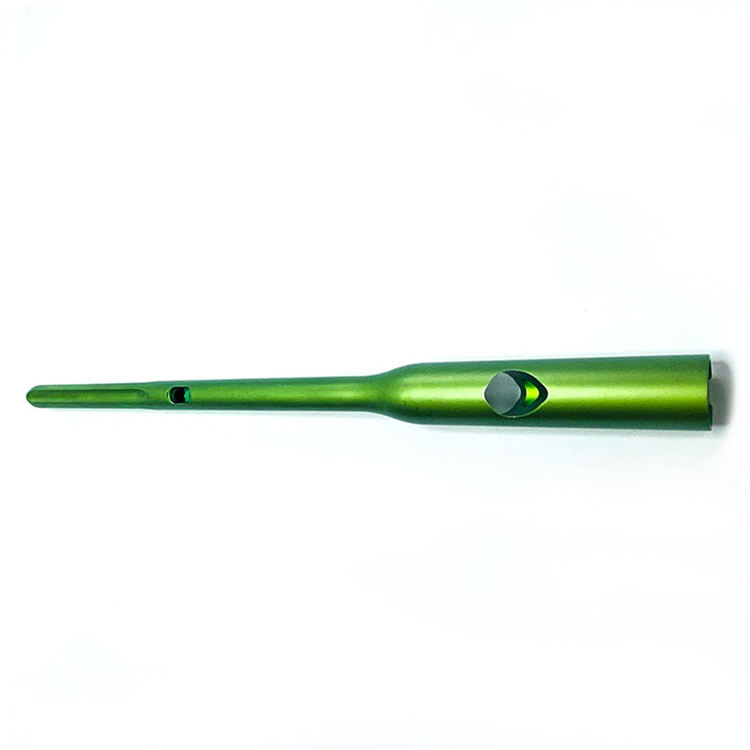

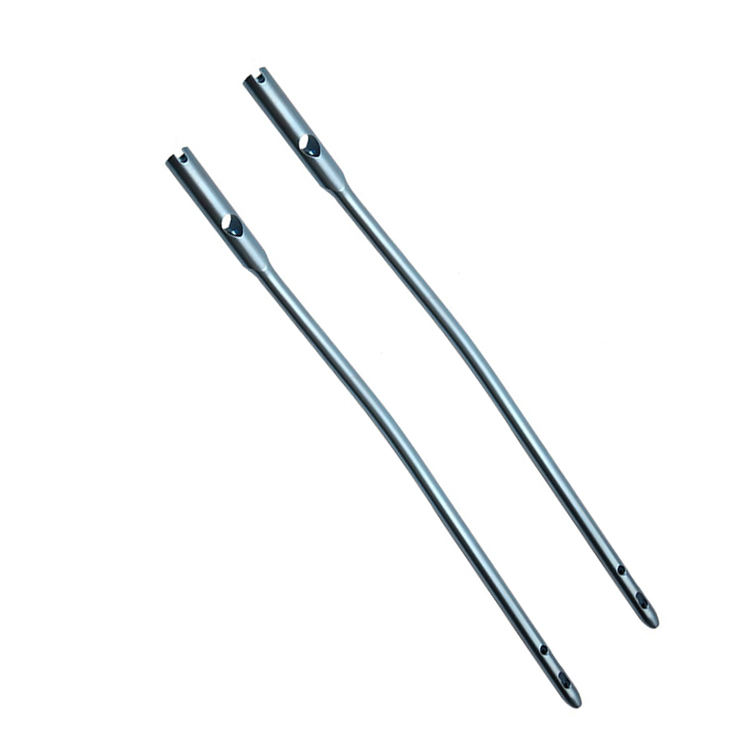

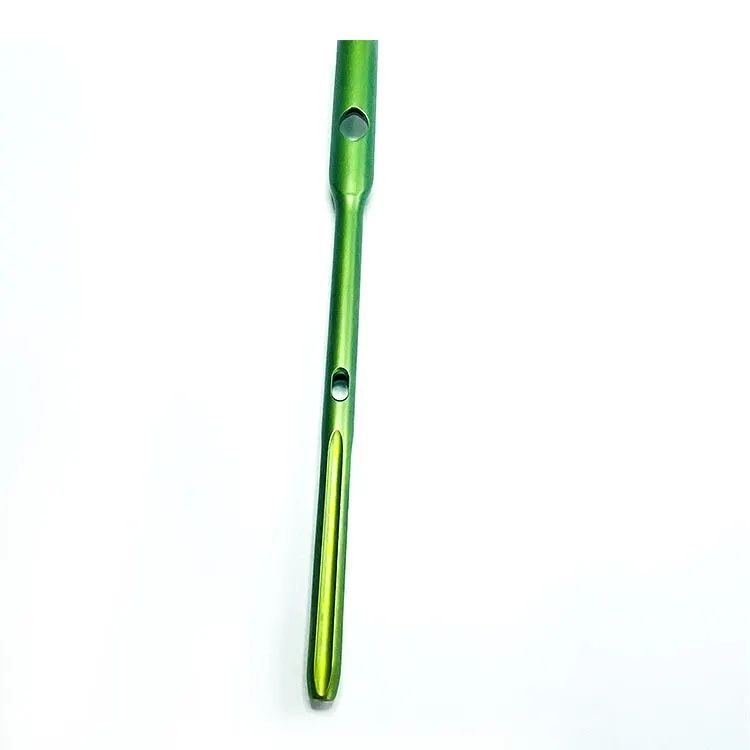

| Proximal Femoral Nail Antirotation | SGM-IIK | 9.0×170×130° | Titanium Alloy | 15649170 |
| Proximal Femoral Nail Antirotation | SGM-IIK | 9.0×200×130° | Titanium Alloy | 15649200 |
| Proximal Femoral Nail Antirotation | SGM-IIK | 9.0×240×130° | Titanium Alloy | 15649240 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×15 | Titanium Alloy | 15601115 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×20 | Titanium Alloy | 15601120 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×70 | Titanium Alloy | 15600570 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×80 | Titanium Alloy | 15600580 |
| Proximal Femoral Nail Antirotation locking screw | SGM-IIK | 4.9×30--72 | Titanium Alloy | 15604930 |
| Femoral Nail locking screw I | SGG-IIIK | 6.5×75 | Titanium Alloy | 15246575 |
| Femoral Nail Intramedullary Nail | SGG-IIIK | 9.0-13.0 | Titanium Alloy | 15249340 |
| Humeral nail Intramedullary Nail | SHG-IK | 8 | Titanium Alloy | 15728160 |
1. 1.0m radian radius: The length is consistent with the anatomy of the FEM ORAL medullary cavity.
2. Screw-in-screw design: To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.
3. Short nail & Long nail: Short nail (diameter of 8.0/9.5mm, length of 160mm), Long nail (diameter of 7.0/8.5mm, length of 180-315mm). All nails have left and right type, titanium alloy material.
Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis.
Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels. Two anterior and posterior locking holes facilitate manual operation, minimizing rotation.
Nail diameter should be 30-40% of the narrowest transverse diameter of the medullary cavity. Apply to 3mm (6-8 years), 3.5mm (9-11 years), 4.0mm (12-14 years).
Special design of compression holes helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed.
Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of the medullary cavity is twice as likely as that of G3.
