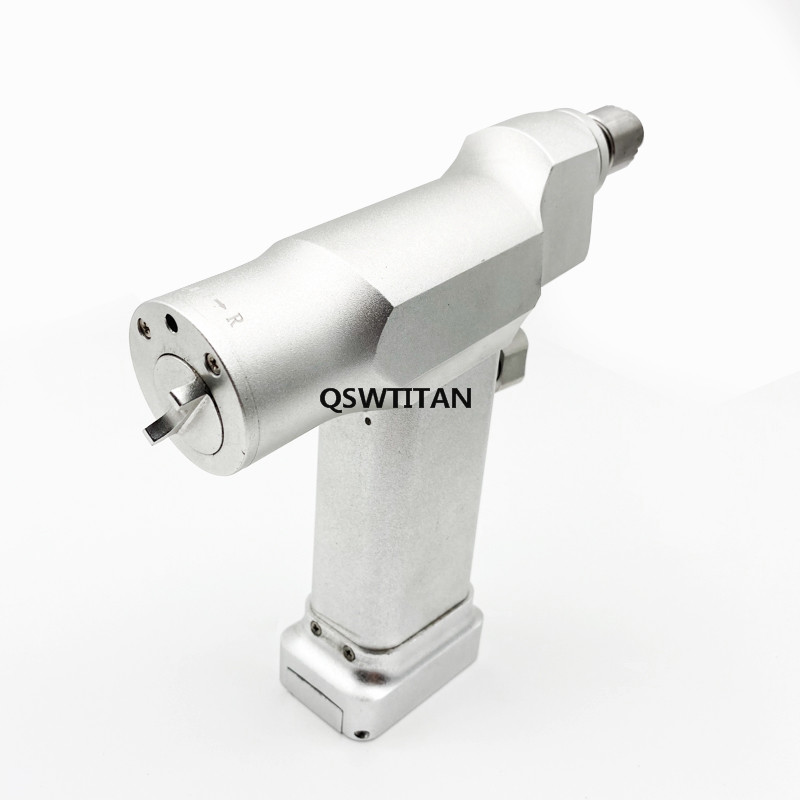

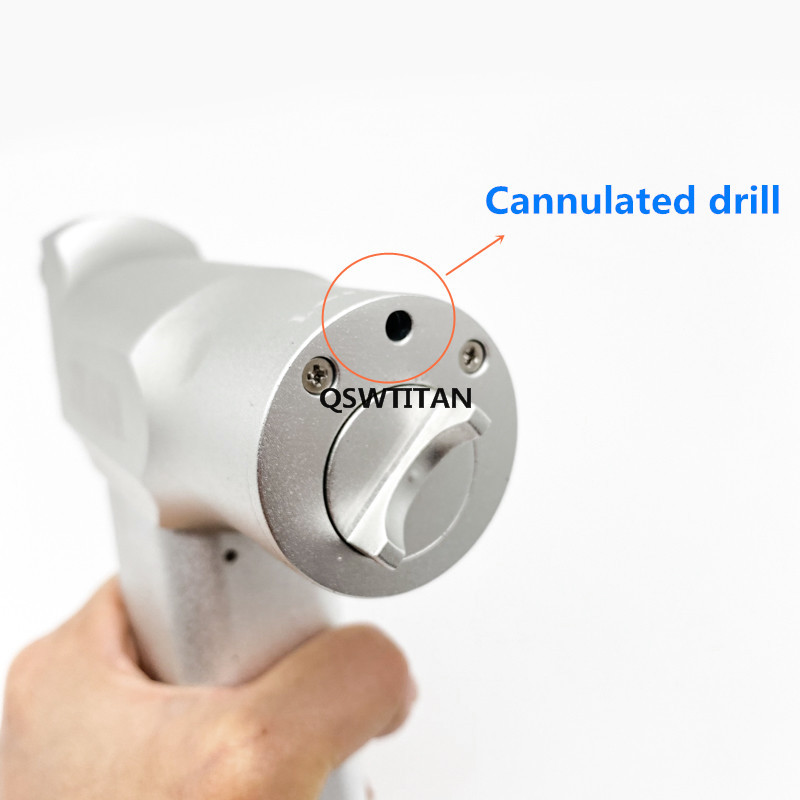

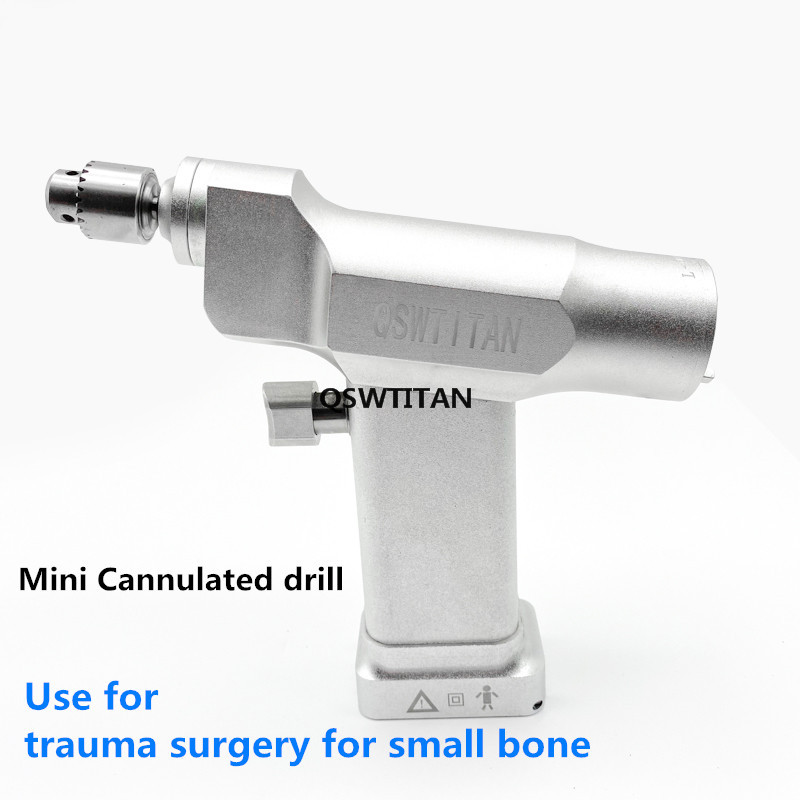

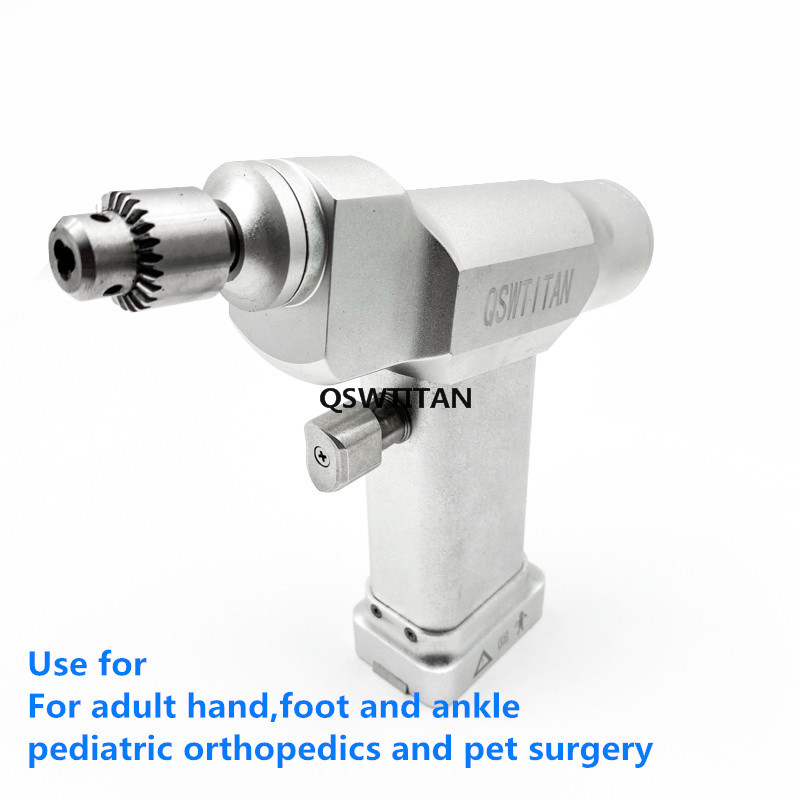

Orthopedic Trauma Surgery Cannulated Hollow Bone Drill Small Cannulated Drill Electric Cannulated Handpiece Machine

Send Inquiry

Product Description

Specification

Product:	Micro mini Cannulated drill
Main Material:	Aluminum Alloy
MOQ:	1 set
Application:	Hand, Wrist and Feet drill
Type:	Orthopedic micro surgery drill, Awl, or cannulated drill
Max. Drilling Diameter:	1.8mm
No-Load Speed:	0-1100 rpm
Drill Type:	Autoclavable
Diameter of Drill Chuck:	0.6-6mm
No Load Noise:	≤ 65dB (a)
Radial Runout:	≤ 0.1mm
Rated Torque:	1.8N.m
Impact Torque:	3N.m
Hollow Diameter:	≤ 2.5mm
Properties:	Orthopedic Surgical Instruments

Product Description

Standard Configuration

Scenes & Application

Detailed Views

Frequently Asked Questions

Is the micro mini cannulated drill autoclavable?

Yes, the drill type is fully autoclavable, ensuring high standards of sterilization for orthopedic surgeries.

What is the maximum drilling diameter for this device?

The maximum drilling diameter is 1.8mm, specifically designed for precision work in hand, wrist, and feet surgeries.

What are the main applications of this micro drill?

It is primarily used for orthopedic micro-surgeries involving small bones, such as those in the hand, wrist, and feet.

What is included in the standard configuration set?

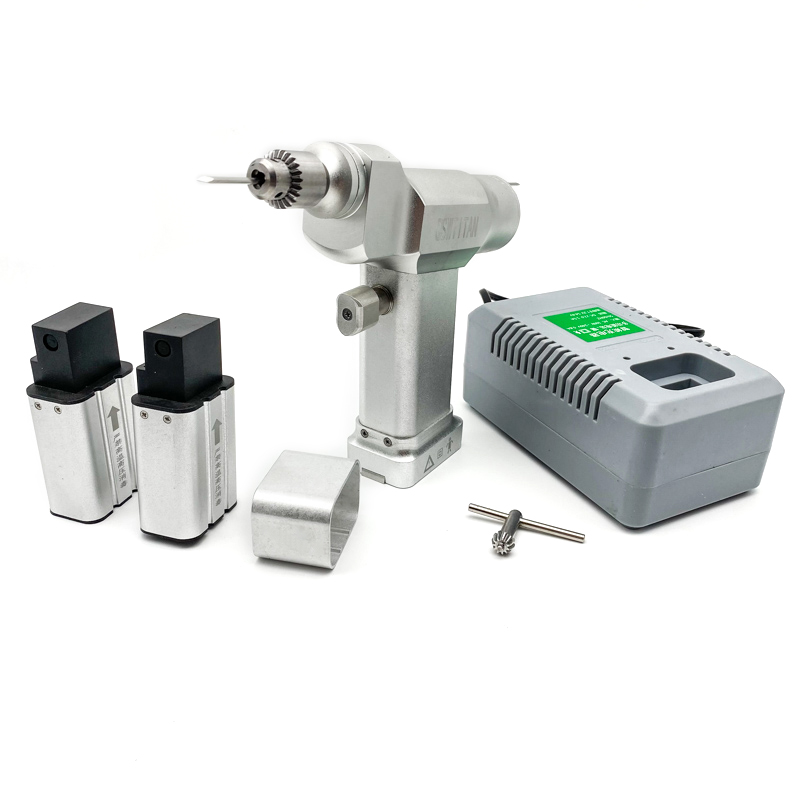

The standard set includes one handpiece, one charger, two batteries, a sterilizing channel, a drill chuck, and a protective aluminum alloy box.

What is the no-load speed and noise level?

The drill operates at a no-load speed of 0-1100 rpm with a low noise level of ≤ 65dB (a), providing a stable surgical environment.

What is the material used for the main body?

The main material is high-quality Aluminum Alloy, which offers a balance of durability and lightweight handling.
