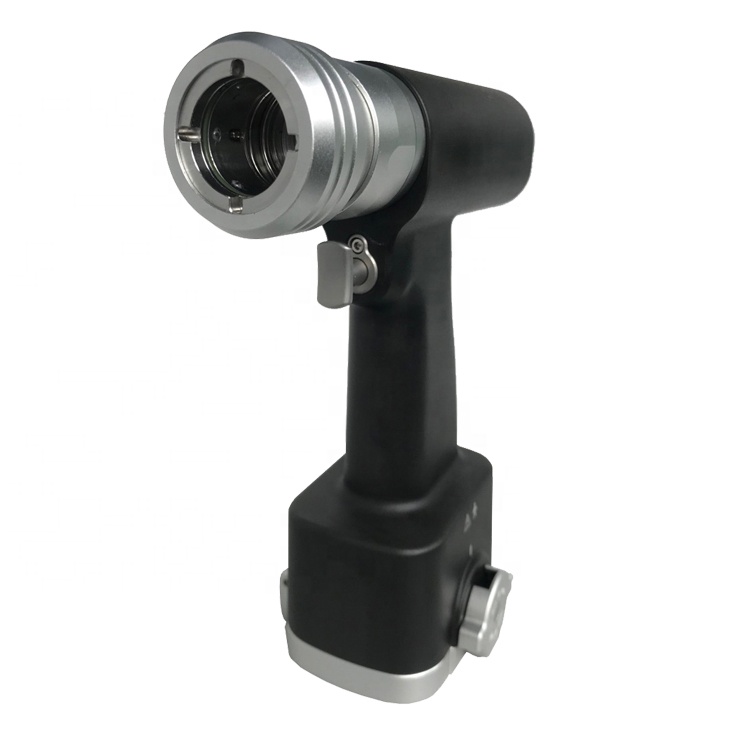

Multi function Bohrsägensystem. It has a greater generator.
| No | Parameter | Data |
|---|---|---|
| 1 | Battery type | Ni-MH battery |
| 2 | Battery capacity | 1800mAh |
| 3 | Operation(V) voltage | 14.4V |
| 4 | Radial circle run-out | ≤0.1mm |
| 5 | Axial movement | ≤0.5mm |
| 6 | Biggest drill bit diameter | 8mm |
| 7 | Diameter of Cannulation | 4.5mm |
| 8 | Sterilization | ≤135°C |
| 9 | Noise | ≤75dB |
The sterilization temperature should be ≤ 135 °C. For the improved type, it can be ≤ 155 °C. Temperatures exceeding 135 °C may damage the motor.
No, the battery cannot be sterilized. It is not resistant to high temperatures.
The battery must be removed from the power tool after surgery to prevent automatic discharge, which can shorten the battery's service life.

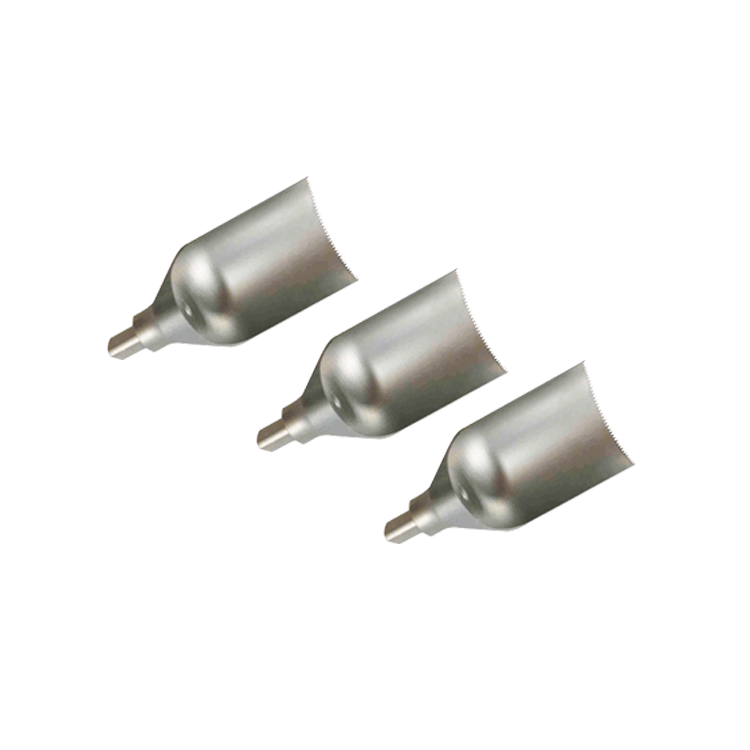

The cranial bur blade is made of flexible medical stainless steel to prevent breaking; however, it wears out easily, so we suggest using it for only one surgery.
Normal bone drills can hold drill bits less than 6 mm. For reaming drills, the torque is higher with an rpm around 300, and for hollow drills, the rpm is around 600.
The cranial bur must be washed immediately after surgery using a purger to avoid blood sticking to the bur, followed by thorough drying.
