Product Description

Orthopedic Oscillating Saw
Veterinary Pet Medical Surgery Saw with Sterilizer Case
Product Overview & Specifications
Product Orthopedic Oscillating Saw
Usage Used for bone surgery, reaming, cutting, grinding etc.
Color Black / Silvery
Material Stainless Steel / Aluminum
Technical Parameters
  • Output Power: 130W
  • Speed: 0-18000cpm
  • Noise: 65 dB
  • Sterilization: 135ºC
  • Operation Voltage: 14.4V
  • Hand-piece Unit Rise in Temperature: 25ºC
  • Main Material: Aluminum Alloy
  • Charger Input Voltage: AC 220V, 50Hz or 110V, 60Hz
  • Charger Output Power: 14.4V, 900mA
  • Charging Time: 2.5-3 Hours
  • Diameter Run-out: 0.5mm
Key Features
  • Can be sterilized up to 135ºC
  • Discretionary speed control to meet different surgery situations.
  • Strong power, low noise, small vibration
  • Convenient operation with ergonomic design
  • Concentric drilling less than 0.05mm difference ensures precise and stable performance.

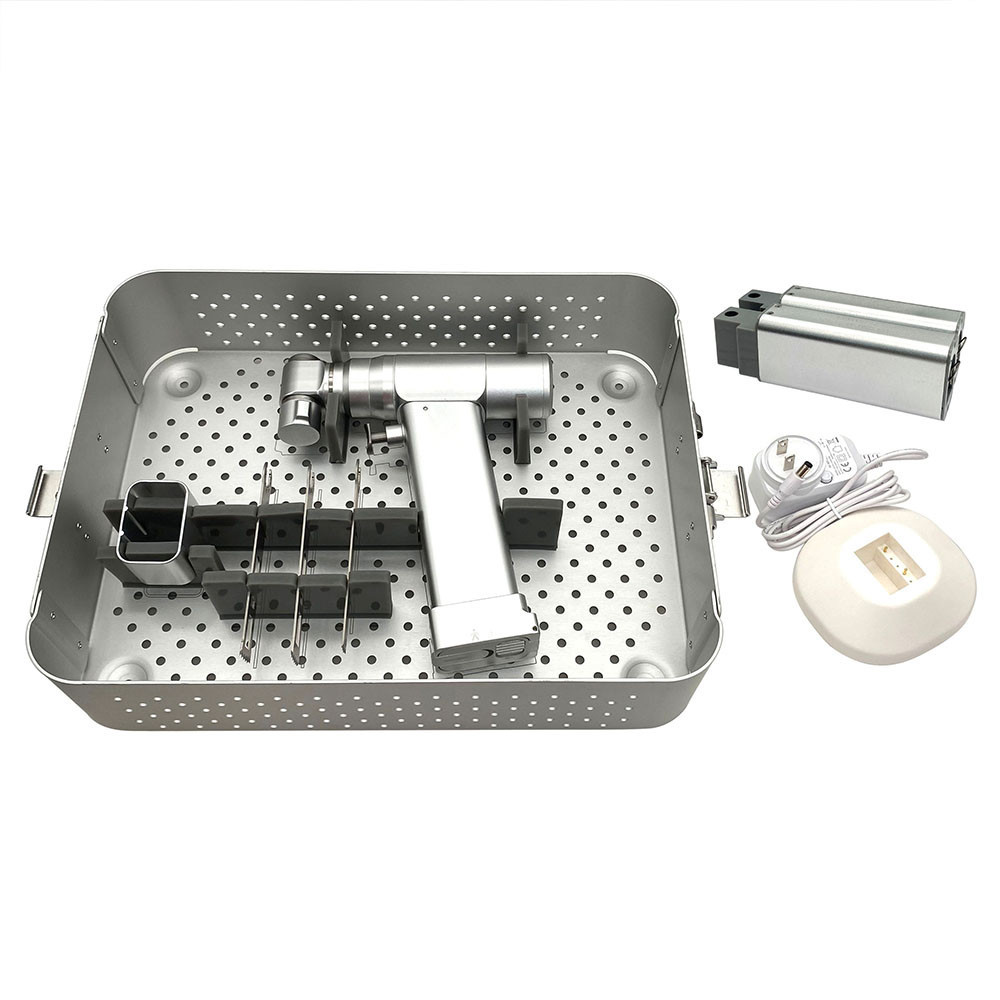

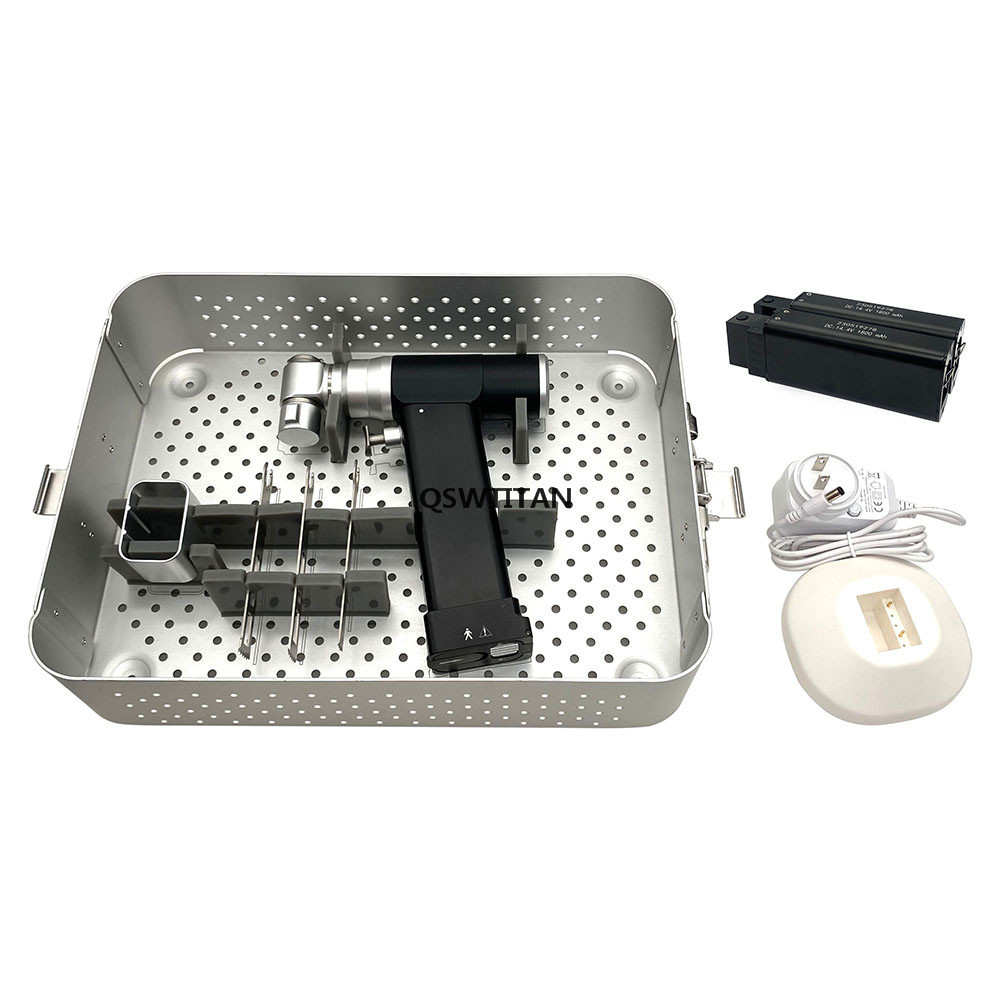

Standard Configuration
1 Handpiece
1 Sterilizing channel
2 Batteries
1 Charger
3 Blades
1 Sterilizer case
Note: Please specify the color you need upon ordering.
Product Color Options

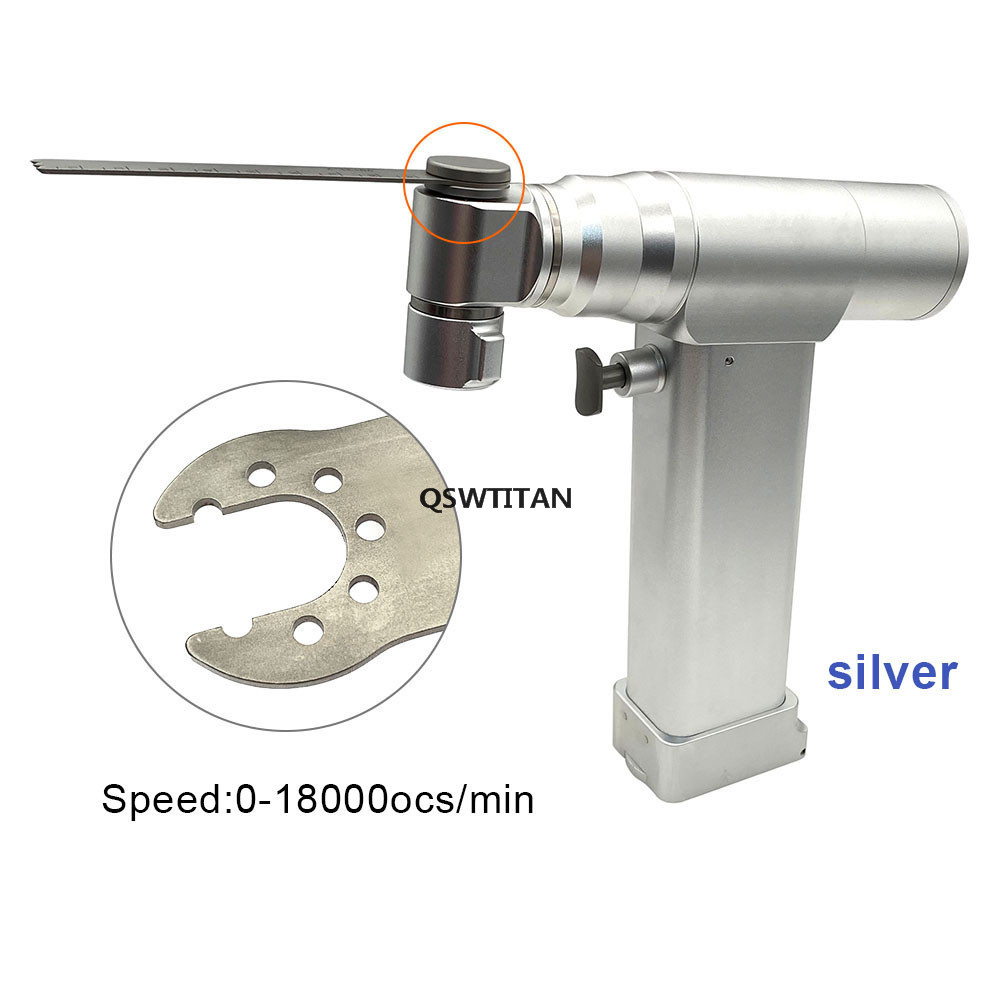

Color Option: Silver
Orthopedic Saw Oscillating Saw Silver View 1
Orthopedic Saw Oscillating Saw Silver View 2
Orthopedic Saw Oscillating Saw Silver View 3
Orthopedic Saw Oscillating Saw Silver View 4

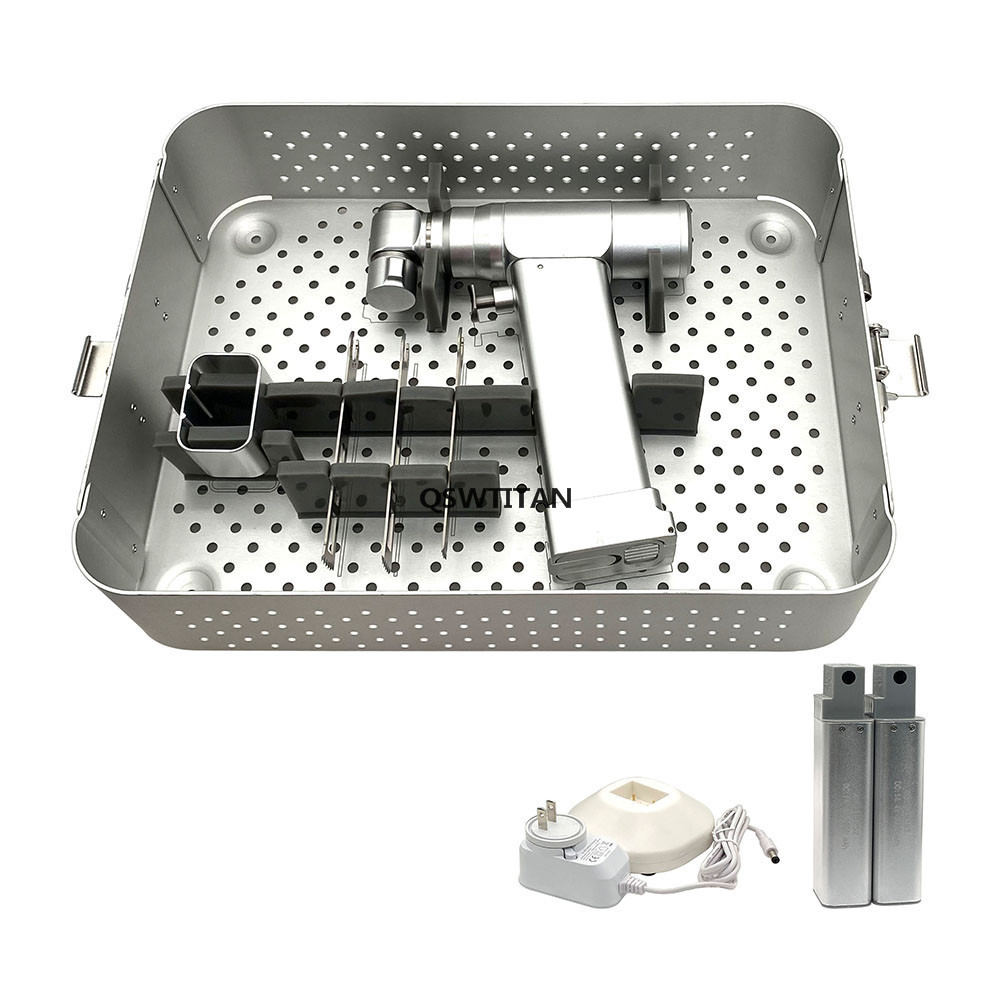

Orthopedic Saw Oscillating Saw Silver View 5

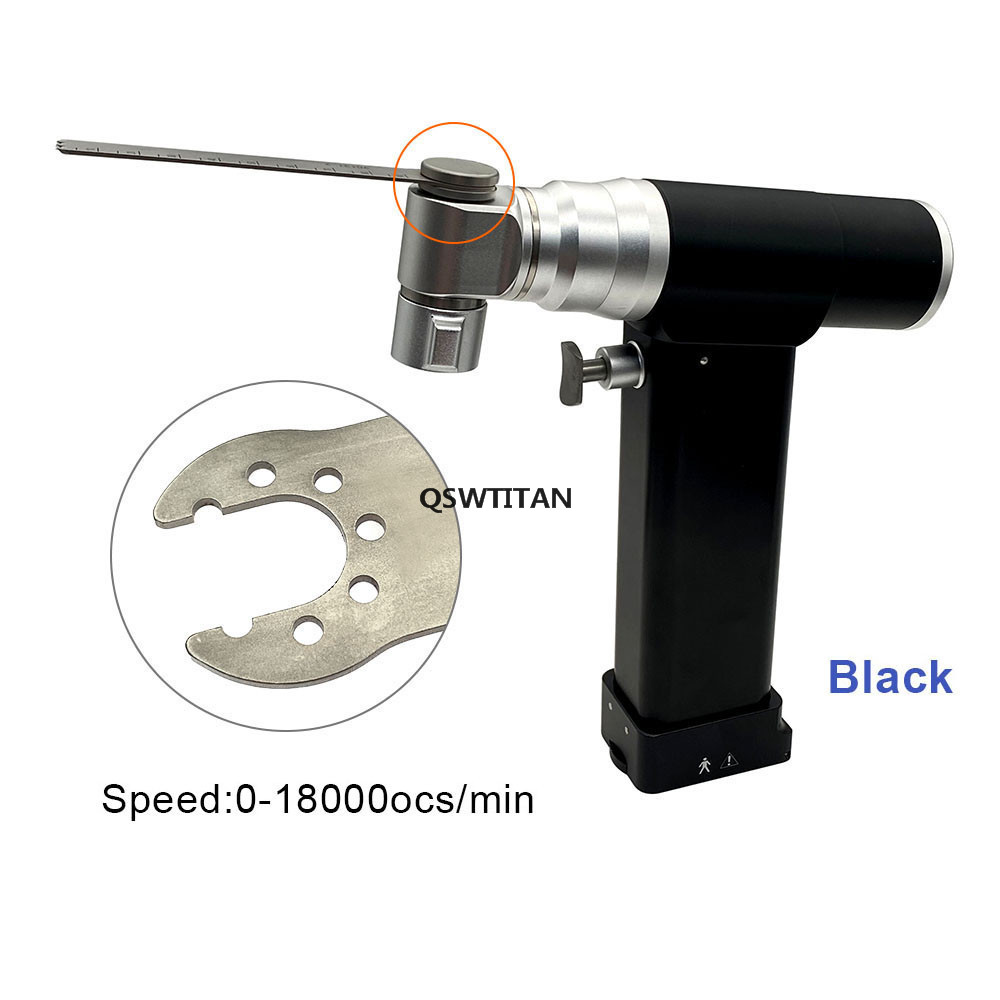

Color Option: Black
Orthopedic Saw Oscillating Saw Black View 1
Orthopedic Saw Oscillating Saw Black View 2
Orthopedic Saw Oscillating Saw Black View 3
Orthopedic Saw Oscillating Saw Black View 4
Usage Scenarios
Orthopedic Saw Usage Scenario 1
Orthopedic Saw Usage Scenario 2
Orthopedic Saw Usage Scenario 3
Orthopedic Saw Usage Scenario 4
Packaging & Shipping
Packaging Box and Case View 1
Packaging Box and Case View 2
Packaging Box and Case View 3
Packaging Box and Case View 4
Packaging Box and Case View 5
Frequently Asked Questions
What is the primary medical application for this oscillating saw?
This orthopedic oscillating saw is specifically designed for veterinary and pet medical surgeries. It is highly efficient for bone surgery procedures including reaming, cutting, and grinding.
Can the handpiece and its accessories be sterilized?
Yes, the handpiece, sterilizing channel, and blades are fully autoclavable and can be safely sterilized at temperatures up to 135ºC to ensure maximum hygiene during operations.
What is the battery capacity and charging duration?
The standard configuration includes two 14.4V rechargeable batteries. A full charge takes approximately 2.5 to 3 hours using the provided charger, ensuring continuous workflow during surgeries.
How does the speed control mechanism work?
The saw features discretionary speed control ranging from 0 to 18,000 cpm. This allows surgeons to adjust the oscillation speed dynamically to suit different bone densities and surgical requirements.
What are the noise and vibration levels of this surgical saw?
The saw is designed with an ergonomic structure that ensures strong power with low noise (≤65 dB) and minimal vibration. The concentric drilling difference is less than 0.05mm, ensuring high precision and stability.
