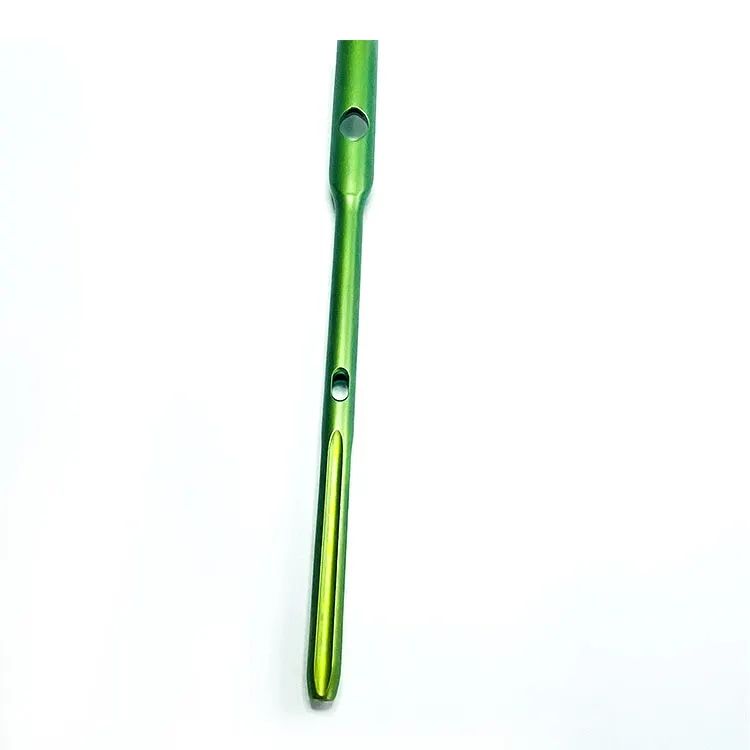

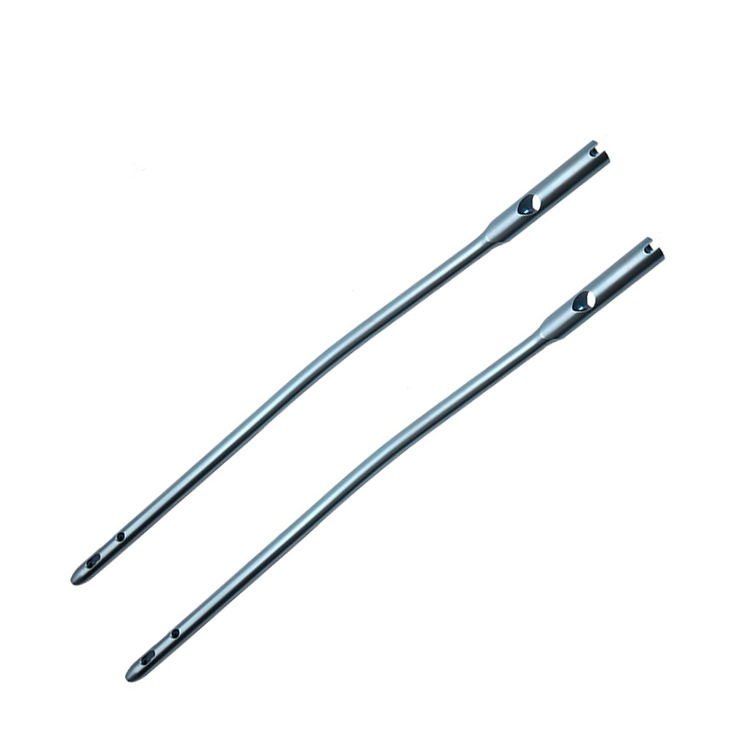

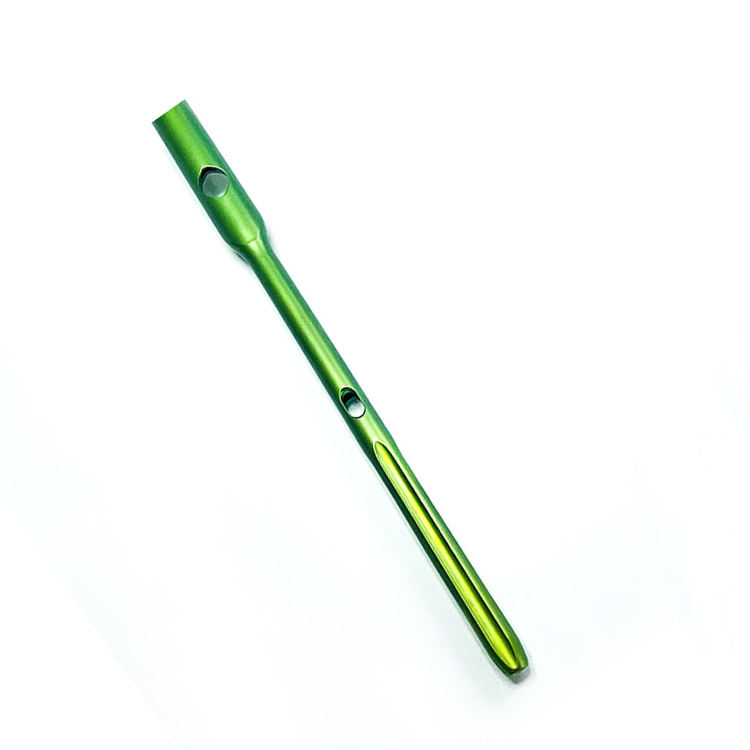

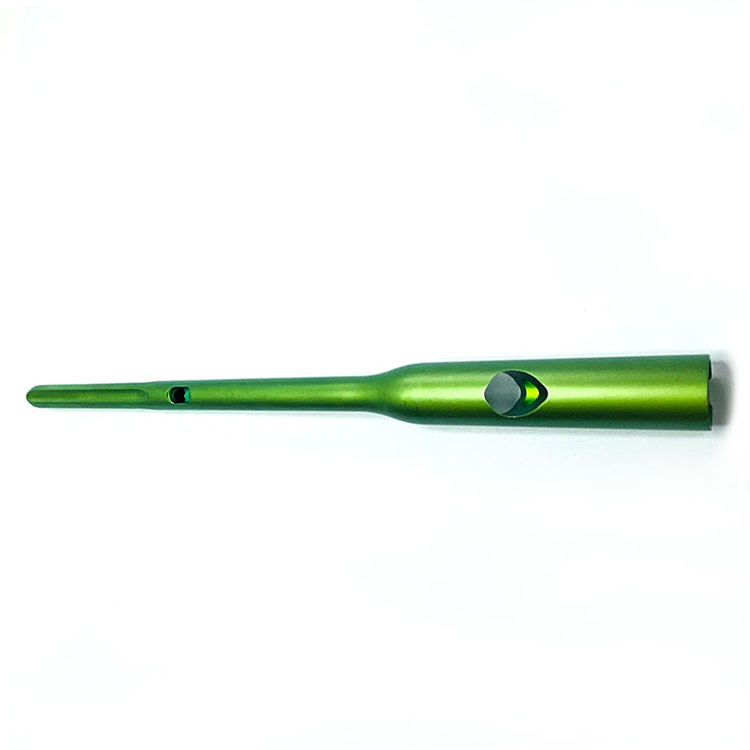

Intramedullary nail: All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.
Key Advantages: High Quality Raw Material, Advanced Facilities, Fine Procedures, High Productivity, Fast Delivery, Leading Level R&D Department, Experienced Marketing Manager, Professional Design Department, Accept OEM & ODM, Excellent After-sales Service.
| Product name | Model | Specification | Material | Code |
|---|---|---|---|---|
| Proximal Femoral Nail Antirotation | SGM-IIK | 9.0×170×130° | Titanium Alloy | 15649170 |
| Proximal Femoral Nail Antirotation | SGM-IIK | 9.0×200×130° | Titanium Alloy | 15649200 |
| Proximal Femoral Nail Antirotation | SGM-IIK | 9.0×240×130° | Titanium Alloy | 15649240 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×15 | Titanium Alloy | 15601115 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×20 | Titanium Alloy | 15601120 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×70 | Titanium Alloy | 15600570 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×80 | Titanium Alloy | 15600580 |
| Proximal Femoral Nail Antirotation Locking Screw | SGM-IIK | 4.9×30--72 | Titanium Alloy | 15604930 |
| Femoral Nail Locking Screw I | SGG-IIIK | 6.5×75 | Titanium Alloy | 15246575 |
| Femoral Nail Intramedullary Nail | SGG-IIIK | 9.0-13.0 | Titanium Alloy | 15249340 |
| Humeral nail Intramedullary Nail | SHG-IK | 8 | Titanium Alloy | 15728160 |
1. 1.0m radian radius: The length is consistent with the anatomy of the femoral medullary cavity.
2. Screw-in-screw design: To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.
3. Specifications: Short nail: diameter of 8.0/9.5mm, length of 160mm. Long nail: diameter of 7.0/8.5mm, length of 180-315mm (15mm interval). All nails have left and right types, titanium alloy material. The diameter is suitable for all applications. Simple operation and minimally invasive implantation.
Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration.
Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve.
Nail diameter should be 30-40% of the narrowest transverse diameter of the medullary cavity. Apply to various age groups.
Special design of compression holes. Helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism.
