Electric Bone Drill Medical Cannulated Bone Drill Autoclavable Veterinary Orthopedic Surgical Instrument
Electric Bone Drill Medical Cannulated Bone Drill Autoclavable Veterinary Orthopedic Surgical Instrument
Electric Bone Drill Medical Cannulated Bone Drill Autoclavable Veterinary Orthopedic Surgical Instrument
Electric Bone Drill Medical Cannulated Bone Drill Autoclavable Veterinary Orthopedic Surgical Instrument
Electric Bone Drill Medical Cannulated Bone Drill Autoclavable Veterinary Orthopedic Surgical Instrument
1 / 5
Electric Bone Drill Medical Cannulated Bone Drill Autoclavable Veterinary Orthopedic Surgical Instrument
Electric Bone Drill Medical Cannulated Bone Drill Autoclavable Veterinary Orthopedic Surgical Instrument
Electric Bone Drill Medical Cannulated Bone Drill Autoclavable Veterinary Orthopedic Surgical Instrument
Electric Bone Drill Medical Cannulated Bone Drill Autoclavable Veterinary Orthopedic Surgical Instrument
Electric Bone Drill Medical Cannulated Bone Drill Autoclavable Veterinary Orthopedic Surgical Instrument

Electric Bone Drill Medical Cannulated Bone Drill Autoclavable Veterinary Orthopedic Surgical Instrument

Send Inquiry

Product Description

Product Specification

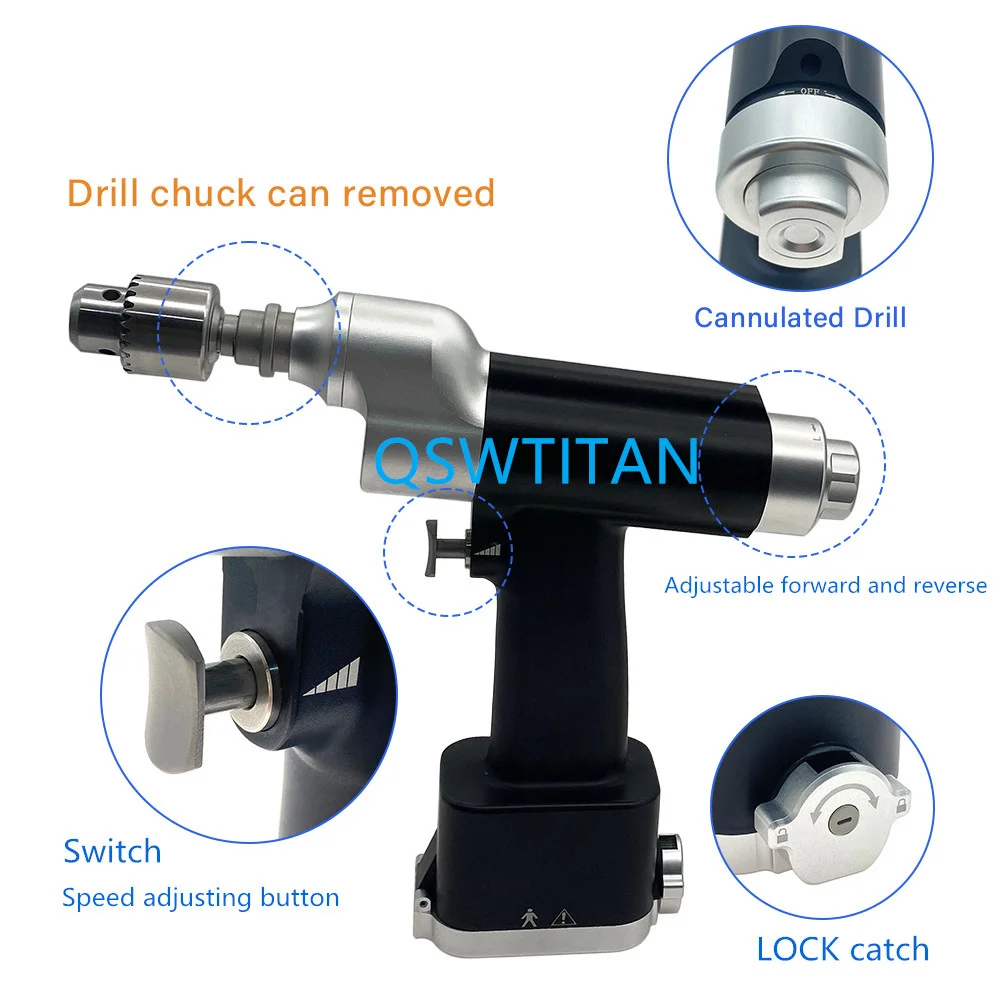

Product:Orthopedic Cannulated Bone Drill (the head is removable)
Main Material:Aluminum Alloy
MOQ:1 set
Application:Orthopedic Surgical Instruments
Speed:≥900 RPM

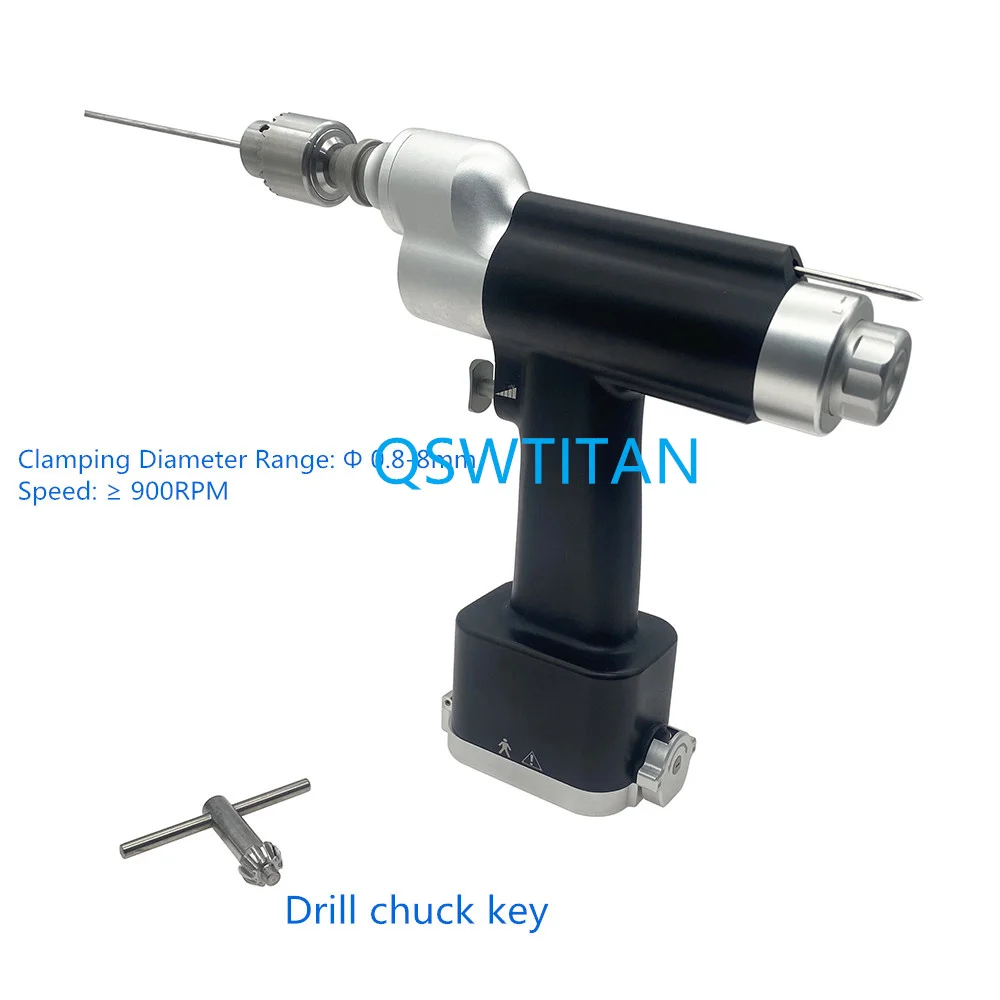

Clamping range:Φ 0.8-8mm
Operation voltage:14.4V
Torque:≥0.75 Newton/m
Noise:≤63 dB
Battery capacity:1800mA
Charger Input Voltage:AC 220V, 50Hz or 110V, 60Hz
Host temperature rise:≤ 25°C
Charger Output Power:14.4V
Charging Time:2.5-3 Hours
Can be sterilized up to:135°C
Product Description
✓Reliable and economical performance; handpiece includes a 1-year warranty.
✓Main engine features strong power and supports high-temperature, high-pressure sterilization (except batteries).
✓Speed: Features stepless speed regulation for precise control.
✓Designed for trauma surgery, including drilling, screwing, and fixing steel plates.
✓Wide application range: Suitable for Kirschner's needle, intramedullary nailing, PFNA surgery, sports medicine, and external fixation braces.

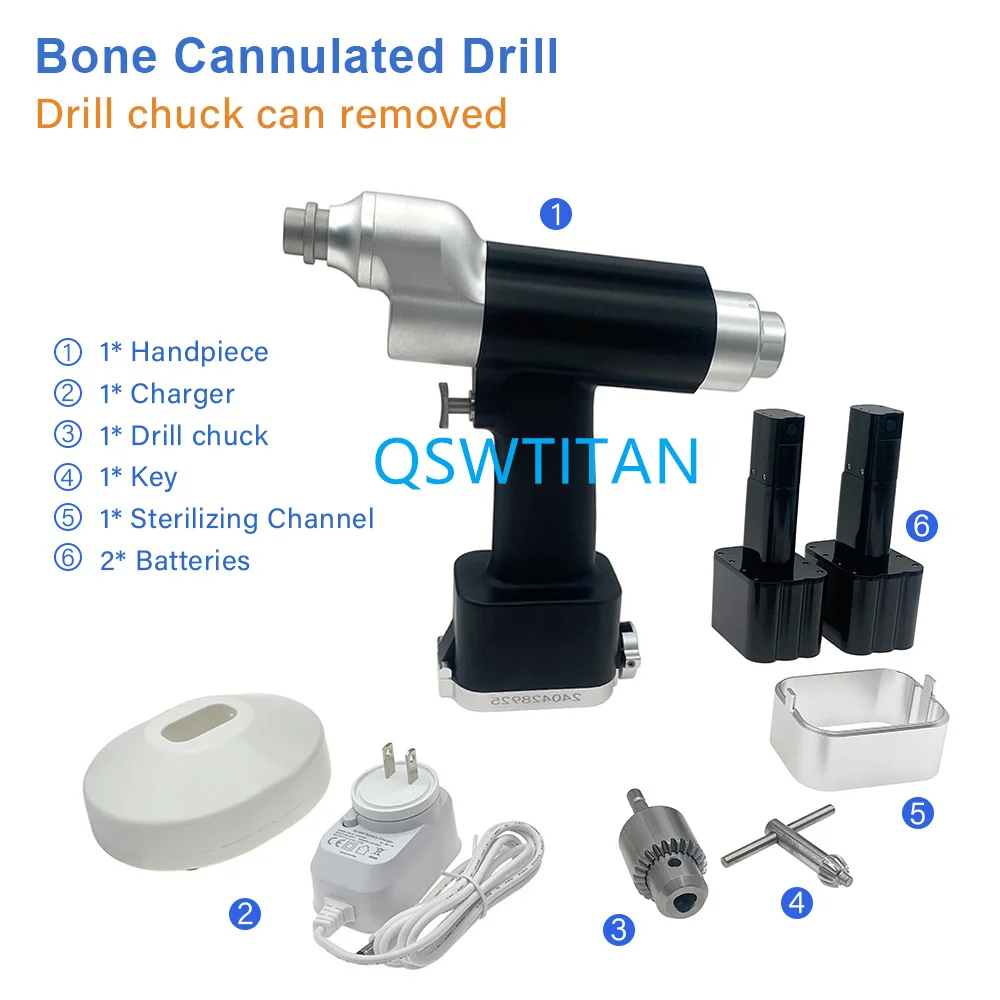

Product View 1

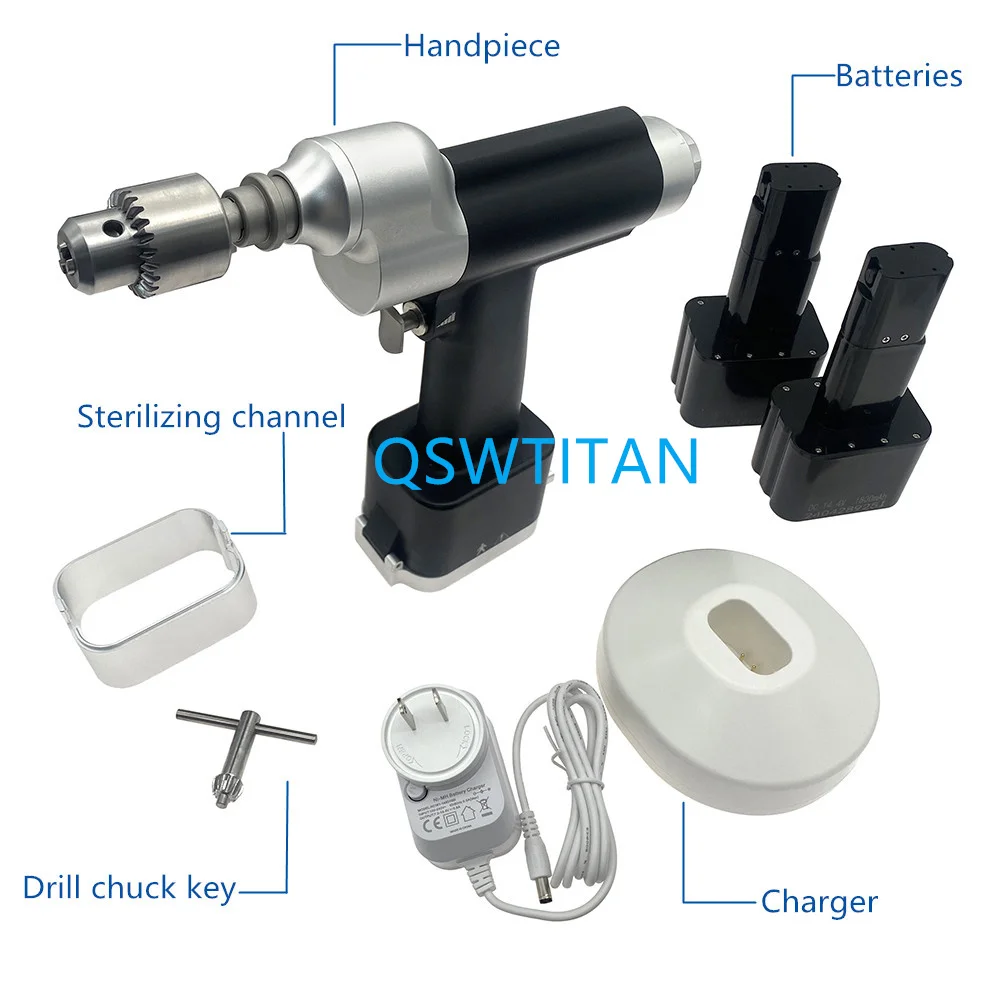

Product View 2
Product View 3
Product View 4
Product View 5
Product View 6

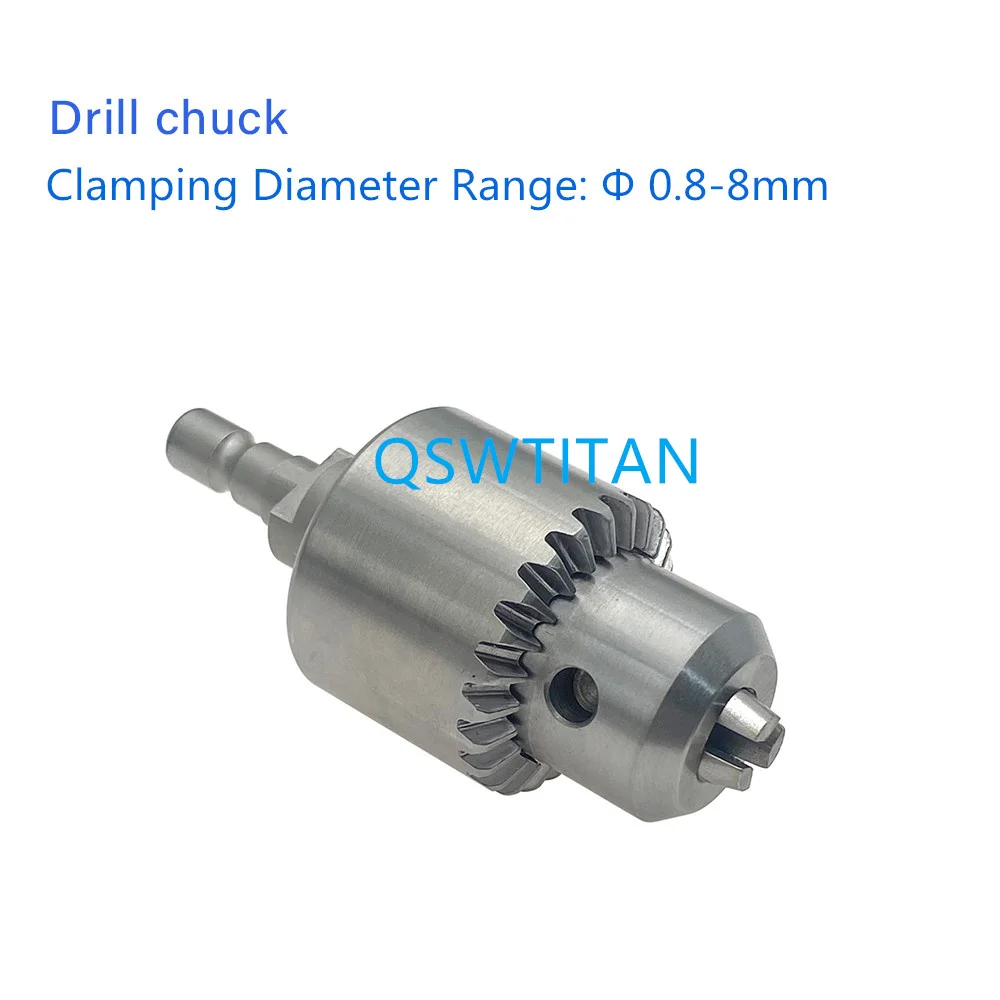

Product View 7
Product View 8

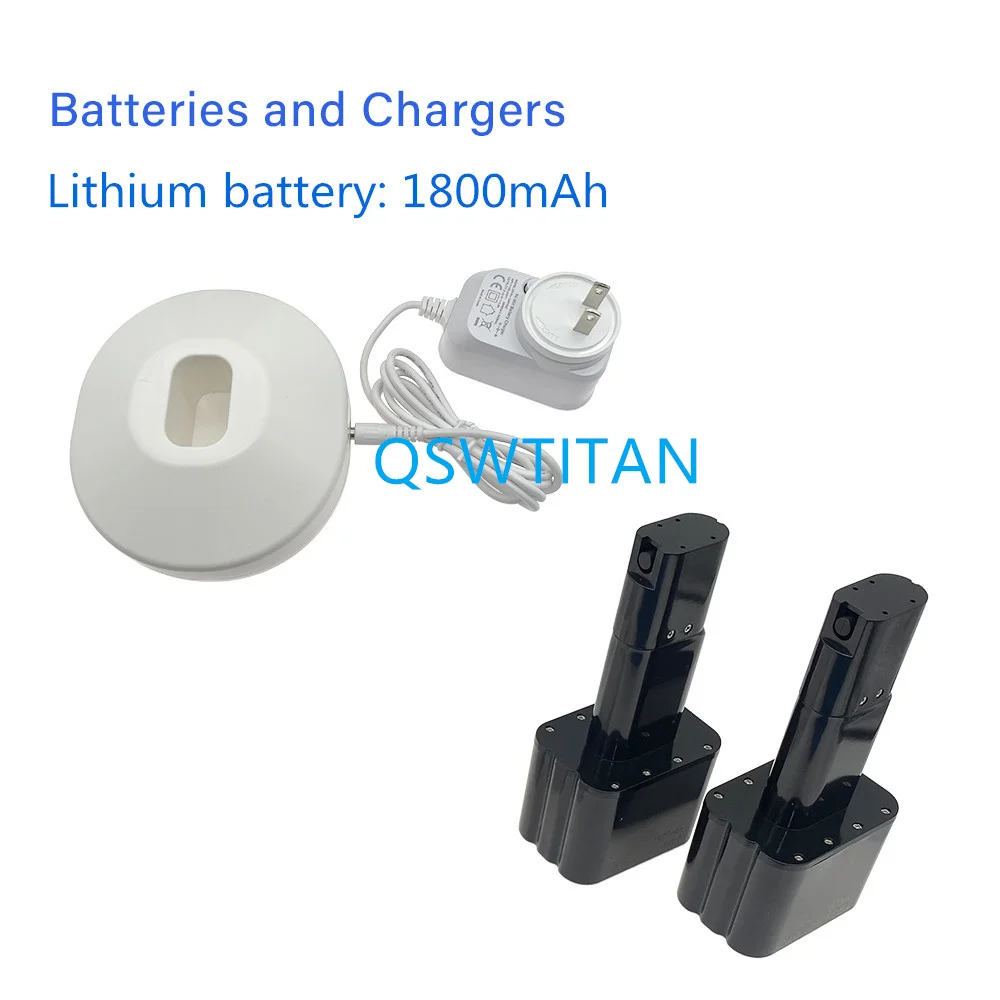

Product View 9

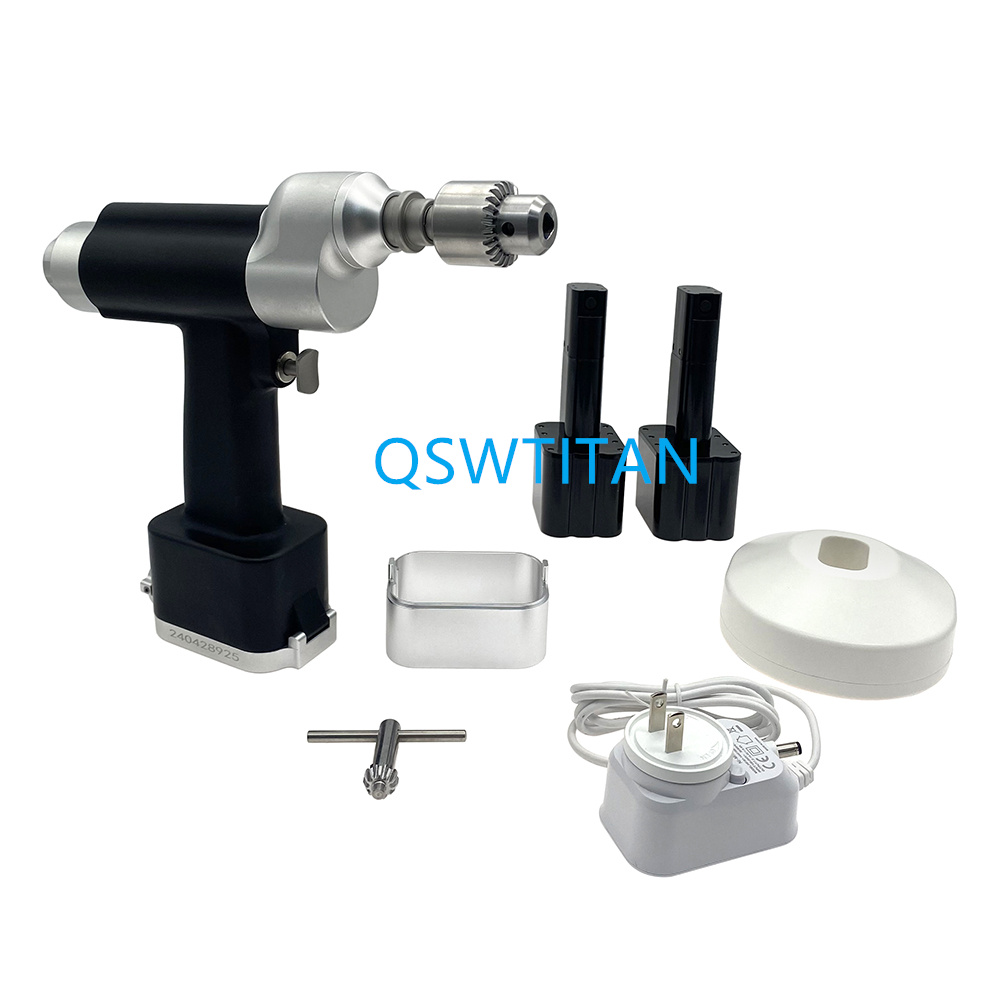

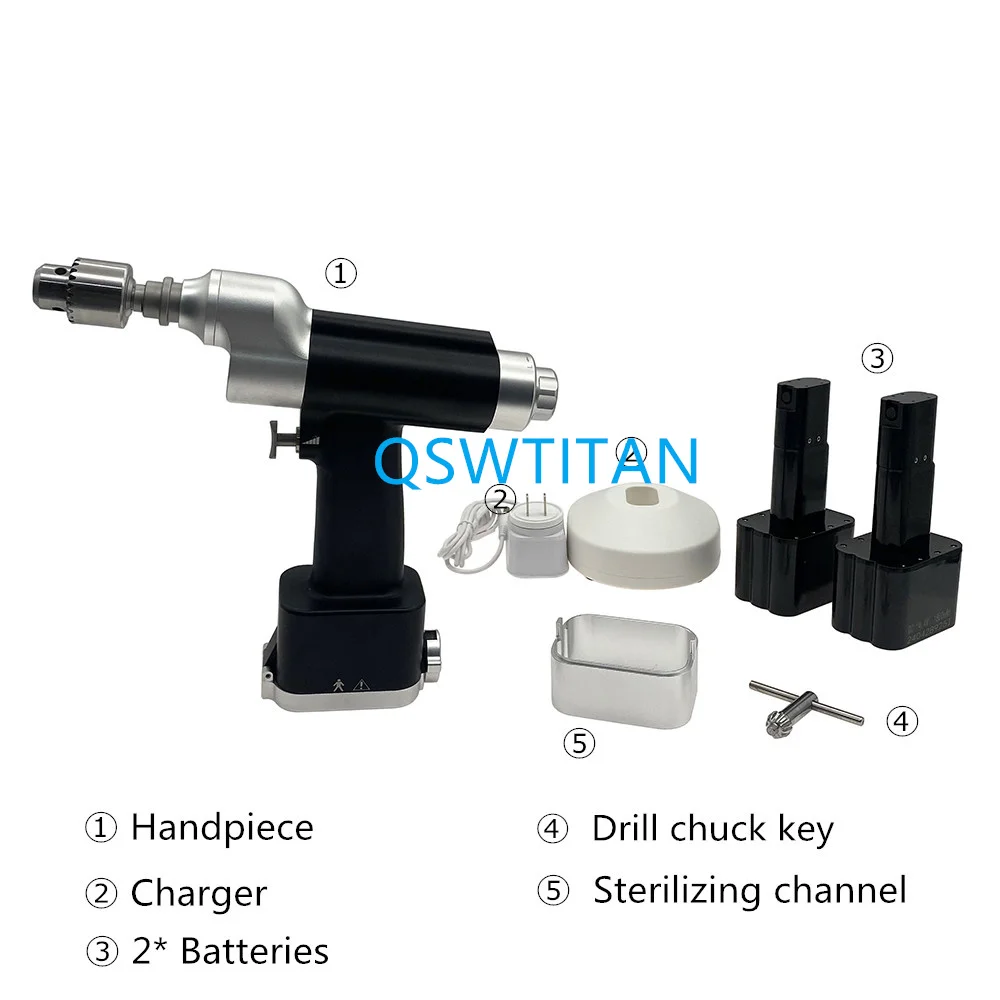

Standard Configuration

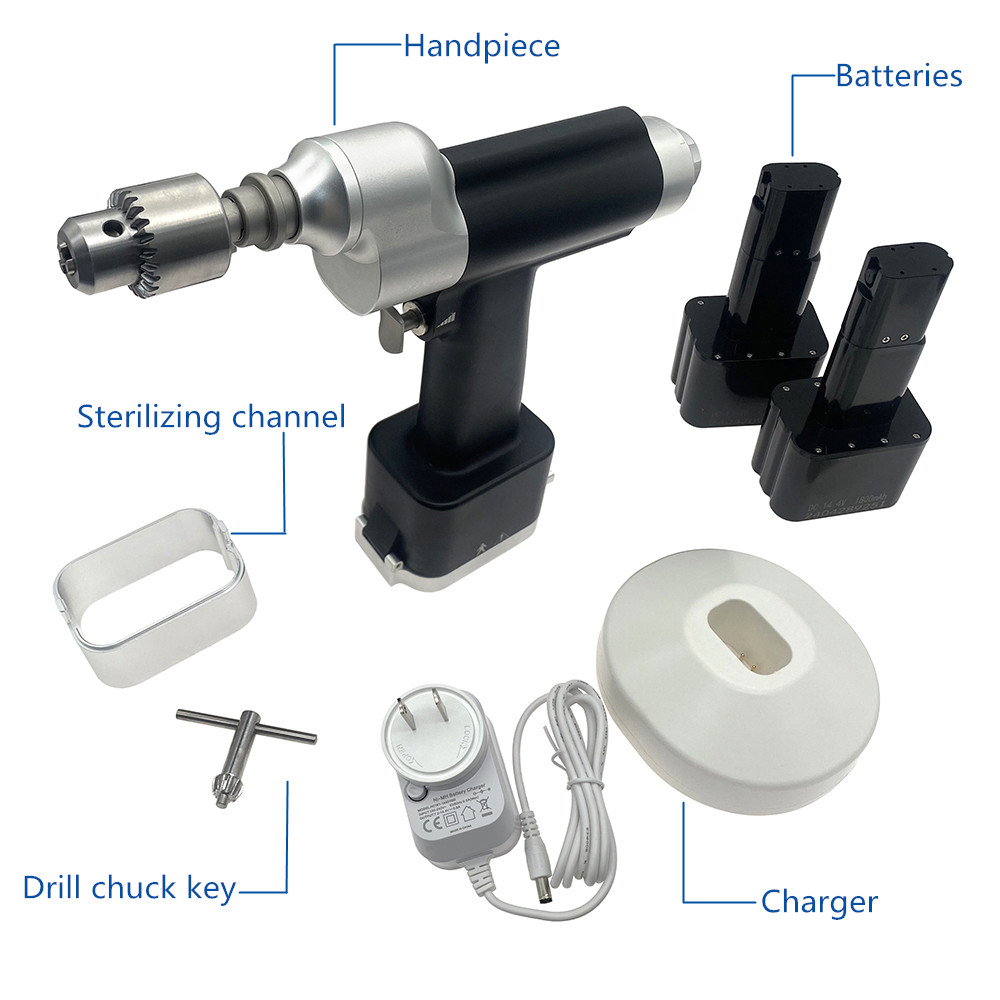

Standard Configuration:
  • ◆ 1* Handpiece

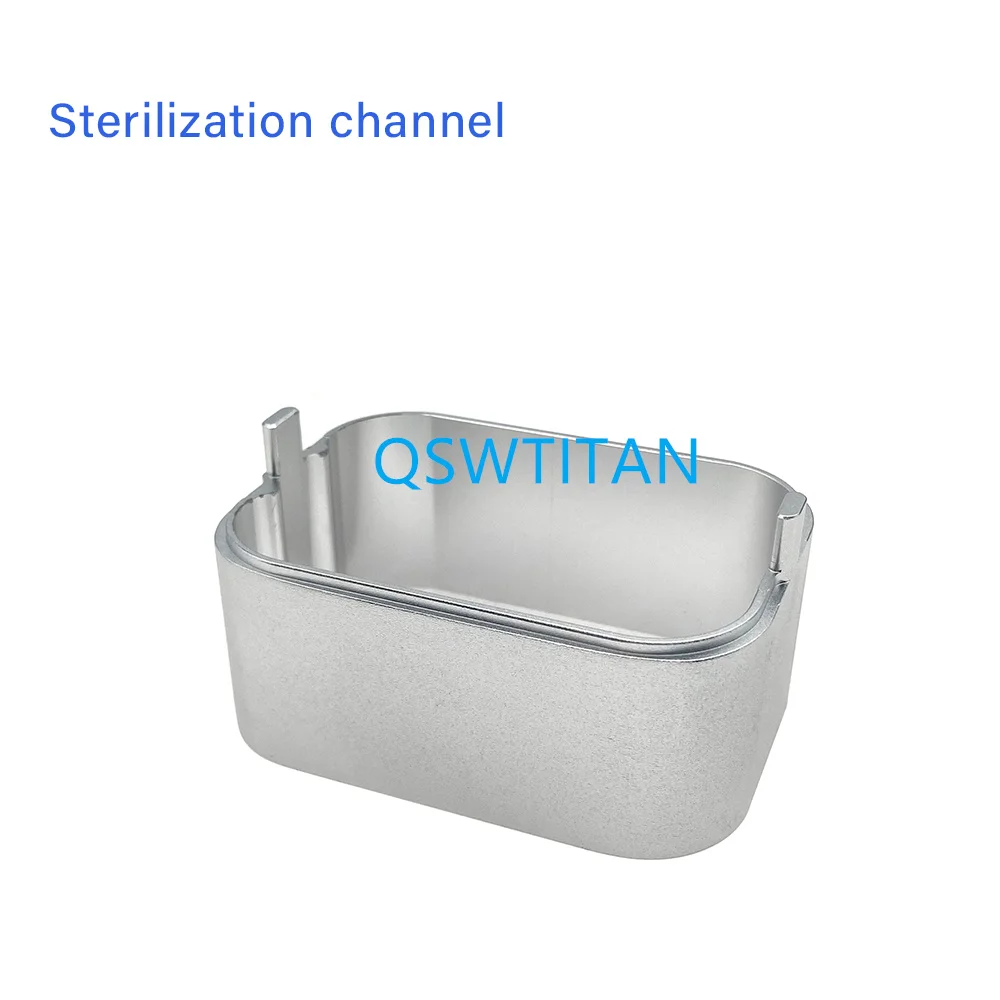

  • ◆ 1* Sterilizing channel

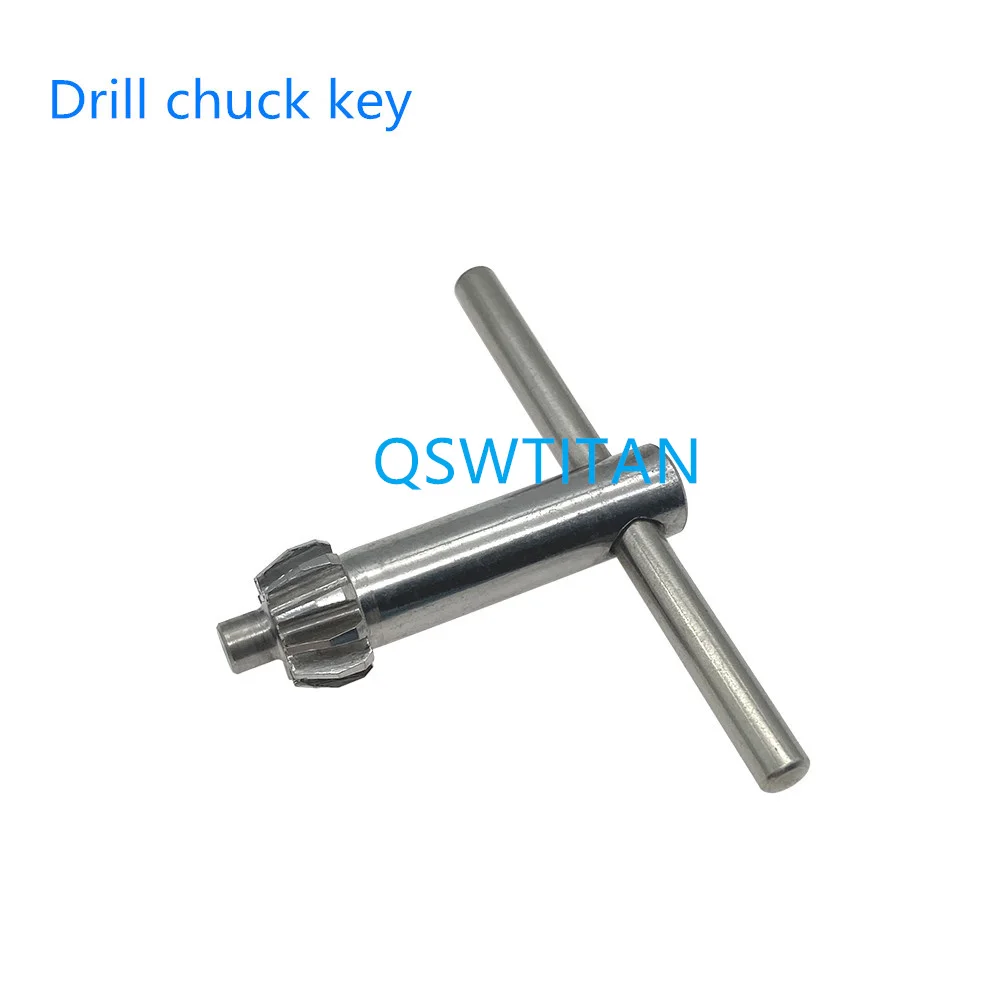

  • ◆ 1* Drill chuck key
  • ◆ 2* Batteries
  • ◆ 1* Charger
  • ◆ 1* Aluminum box or Sterilizing case (please choose)

Two choices, with aluminum box or with sterilized box, please choose before ordering, we will ship according to your choice, thank you!

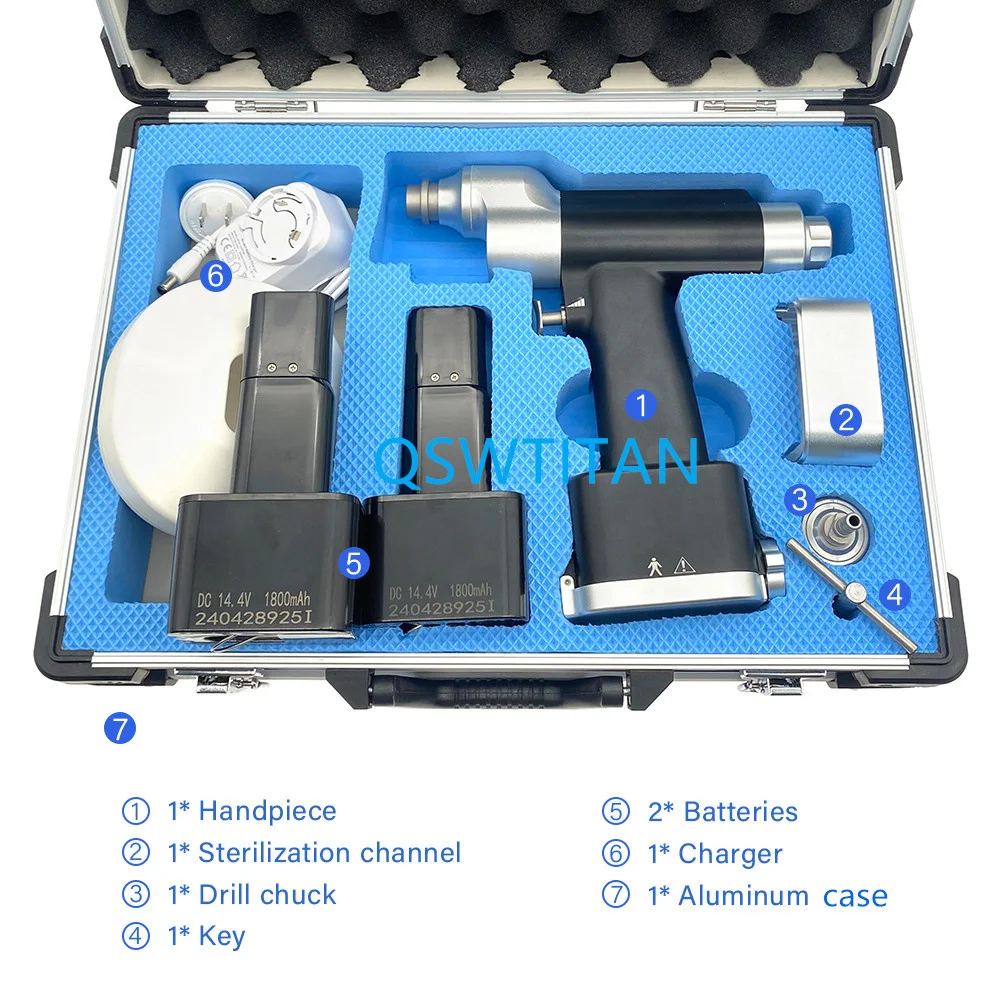

Aluminum Case

With aluminum case

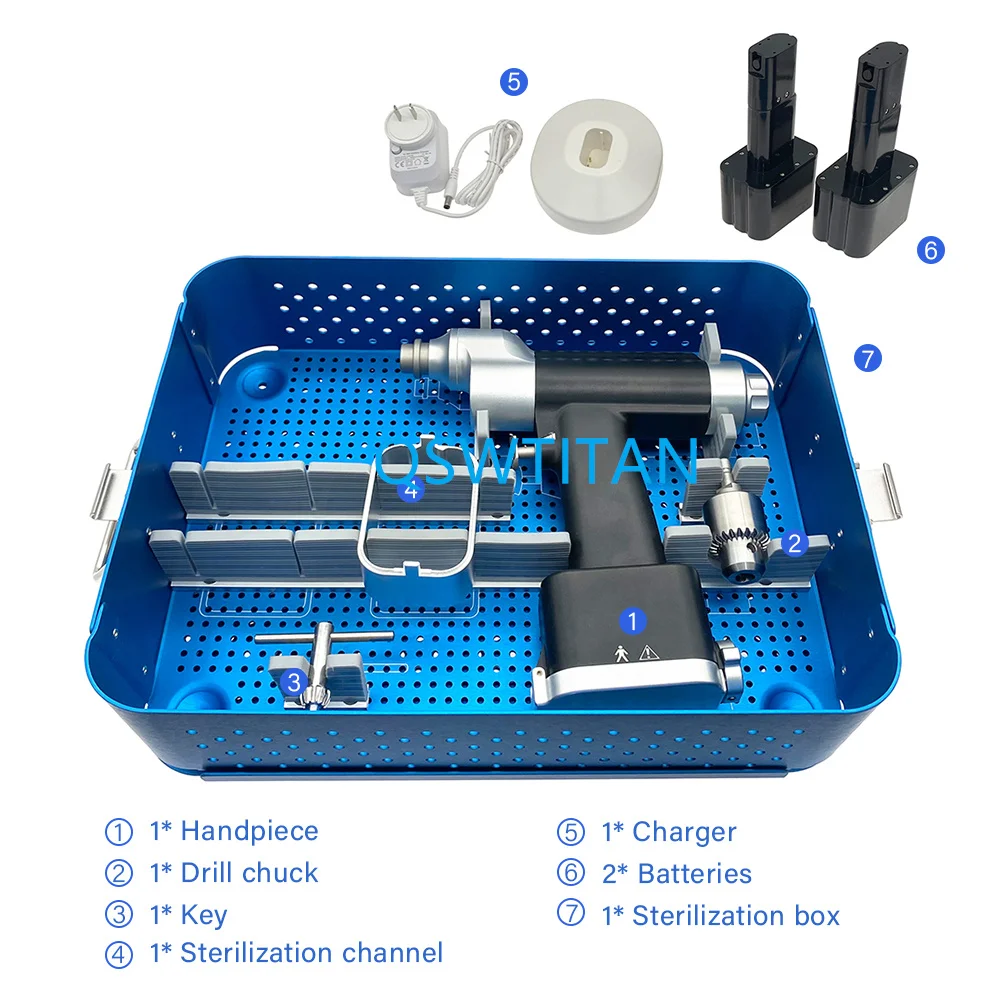

Sterilizer Box

With sterilizer box

Clinical Scenes
Scenes
Production Showcase
Video Overview
Profile 1 Profile 2 Profile 3 Profile 4 Profile 5 Profile 6 Profile 7 Profile 8 Profile 9
Frequently Asked Questions
Q1: Can the orthopedic bone drill be sterilized?
A: Yes, the main handpiece can be sterilized using high temperature and high pressure up to 135°C. Please note that batteries should be removed before sterilization.
Q2: What is the warranty for this surgical instrument?
A: We offer a free 1-year warranty on the handpiece, ensuring reliable performance for your surgical needs.
Q3: How long does the battery last and what is the charging time?
A: The battery has a capacity of 1800mA and takes approximately 2.5 to 3 hours to fully charge. The standard configuration includes two batteries.
Q4: What are the main clinical applications for this cannulated drill?
A: It is widely used in trauma surgery, Kirschner's needle procedures, intramedullary nailing, PFNA surgery, sports medicine, and external fixation braces.
Q5: What is the clamping range of the drill chuck?
A: The clamping range for the drill chuck is between Φ 0.8mm and 8mm, allowing for various surgical requirements.
Q6: Is the head of the bone drill removable?
A: Yes, the head of this orthopedic cannulated bone drill is designed to be removable for better maintenance and versatility.
