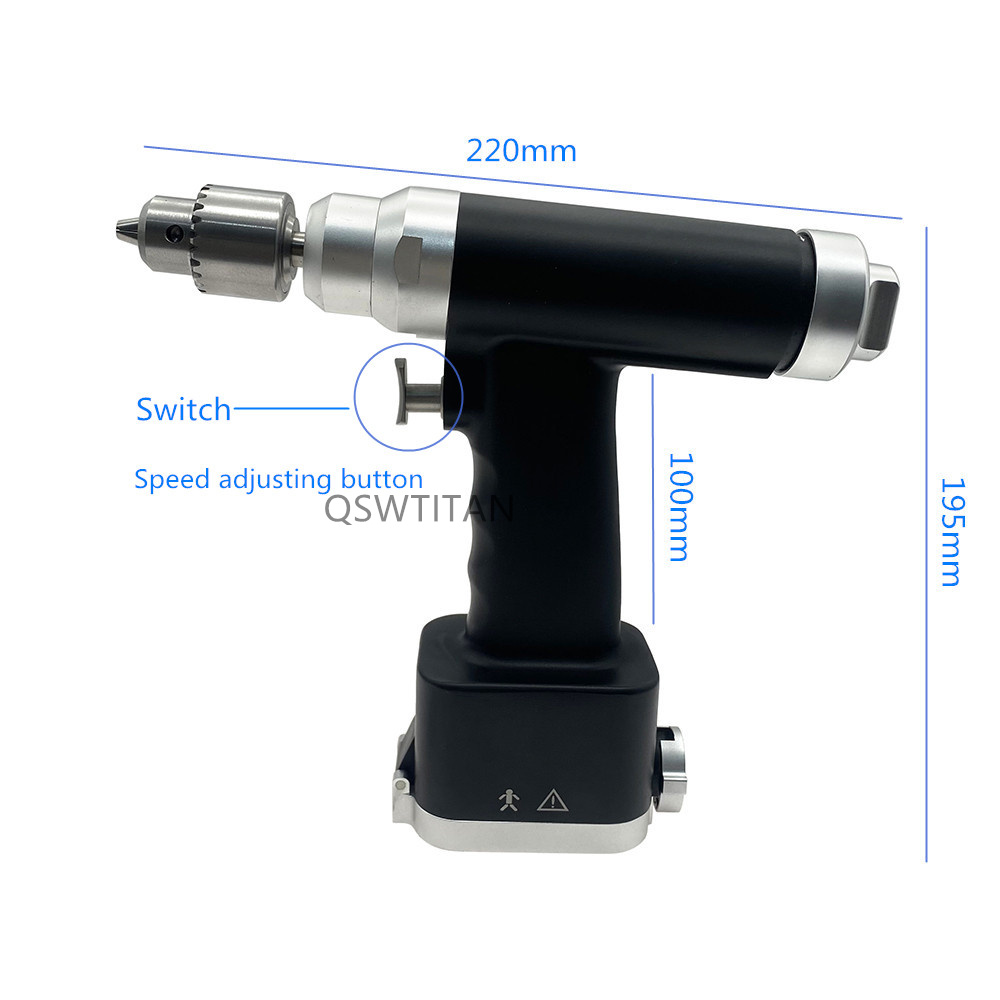

Orthopedic Medical Drill Electric Bone Drill Autoclavable for Trauma Surgery Veterinary Surgical Instruments
| Product name | Orthopedic Power Bone Drill |
| Speed | 0-1200RPM |
| Operation voltage | 14.4V |
| Noise | ≤63 dB |
| Battery capacity | 1800mA |
| Charger Input Voltage | AC 220V, 50Hz or 110V, 60Hz |
| Host temperature rise | ≤ 25°C |
| Charger Output Power | 14.4V, 900mA |
| Torque | ≥0.75 Newton/m |
| Sterilization | 135°C |

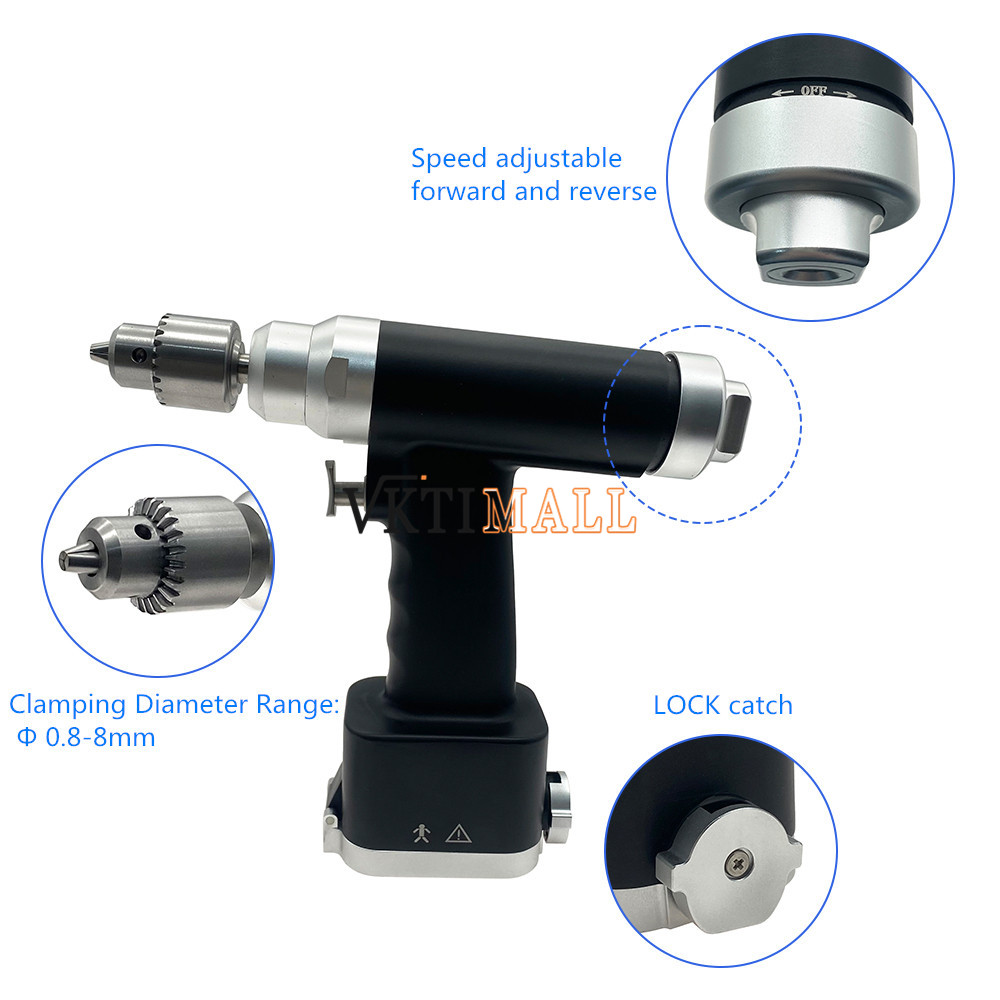

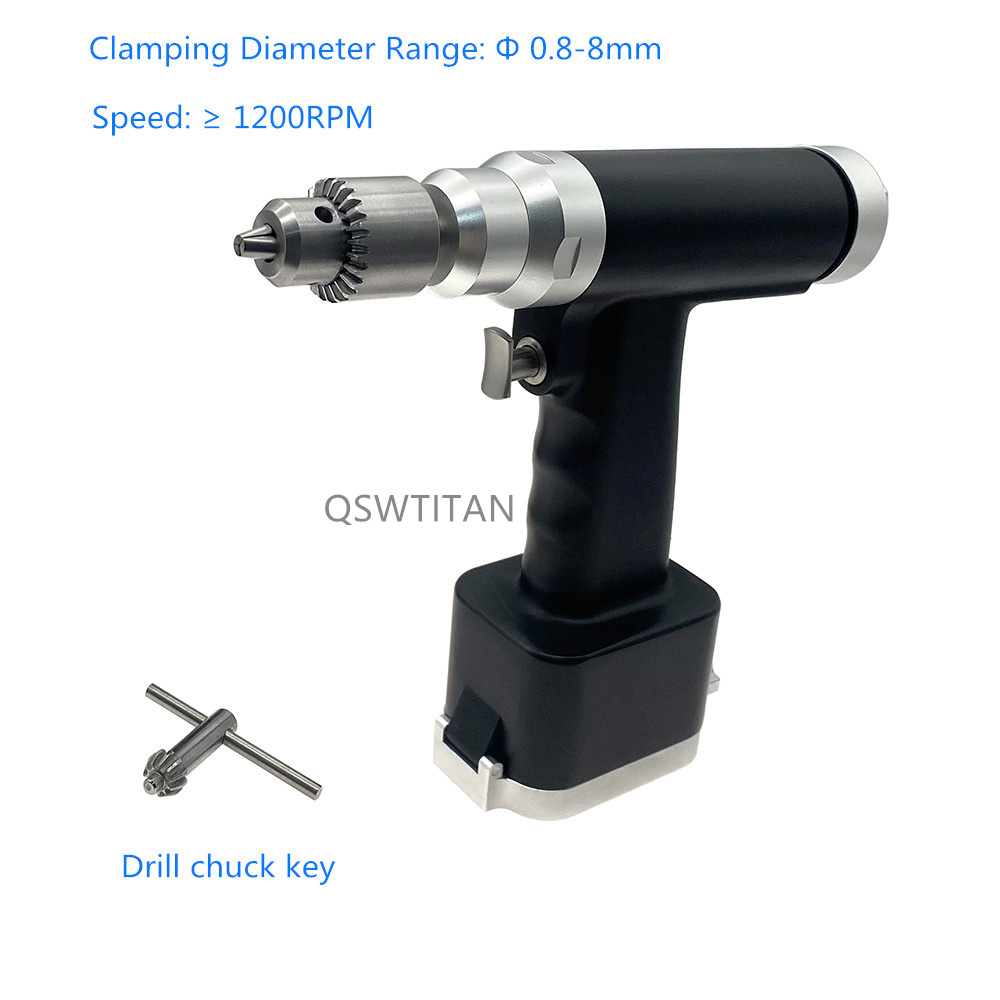

| Chuck Clamping range | φ0.8-8mm |
| Charging Time | 2.5-3 Hours |
Product performance is reliable, economical, the handpiece free warranty 1 year.
The main engine has strong power and can be sterilized by high temperature and high pressure (except batteries).

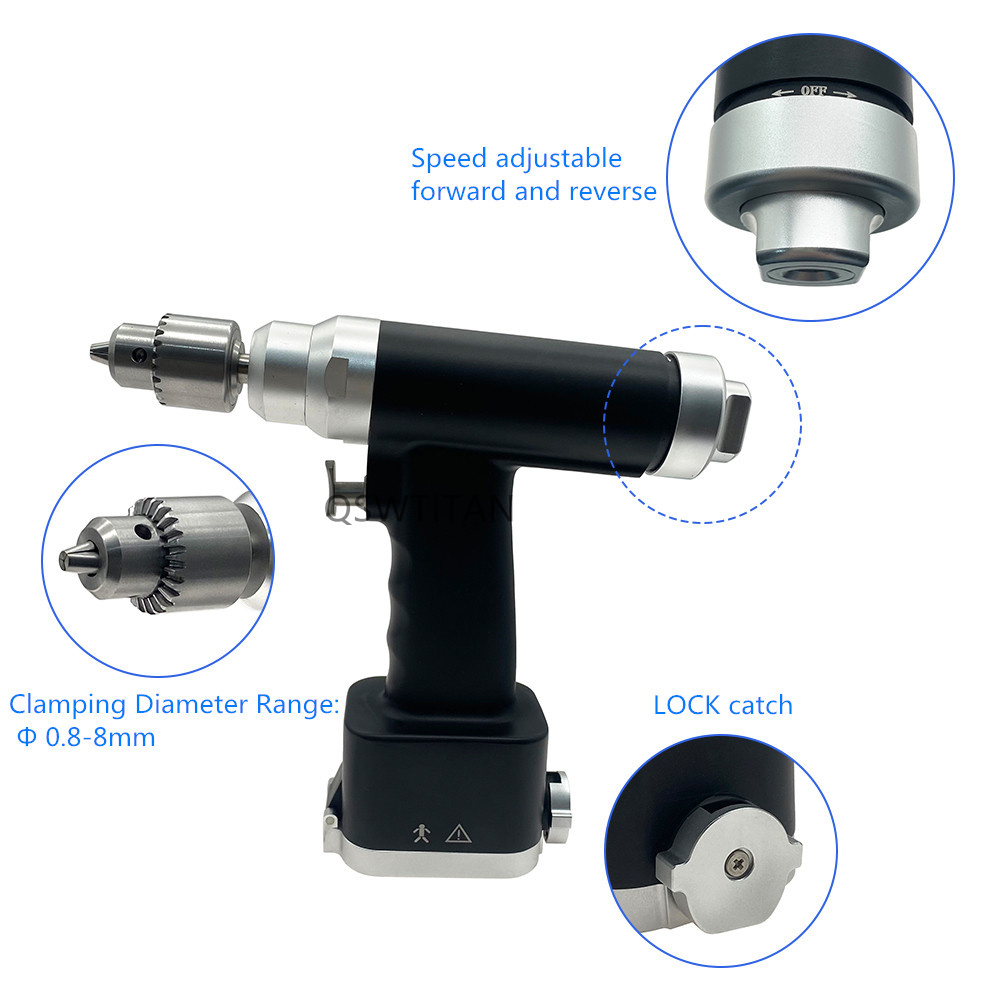

Speed control: features advanced stepless speed regulation.
Mainly designed for trauma surgery, drilling and screwing, and fixing steel plates.
Yes, the main engine is highly autoclavable and can be safely sterilized by high temperature (up to 135°C) and high pressure. Please note that the batteries should be excluded and must not be sterilized.
The speed range is 0 to 1200 RPM. It utilizes step-less speed regulation, which provides smooth control for surgeons during surgical procedures.

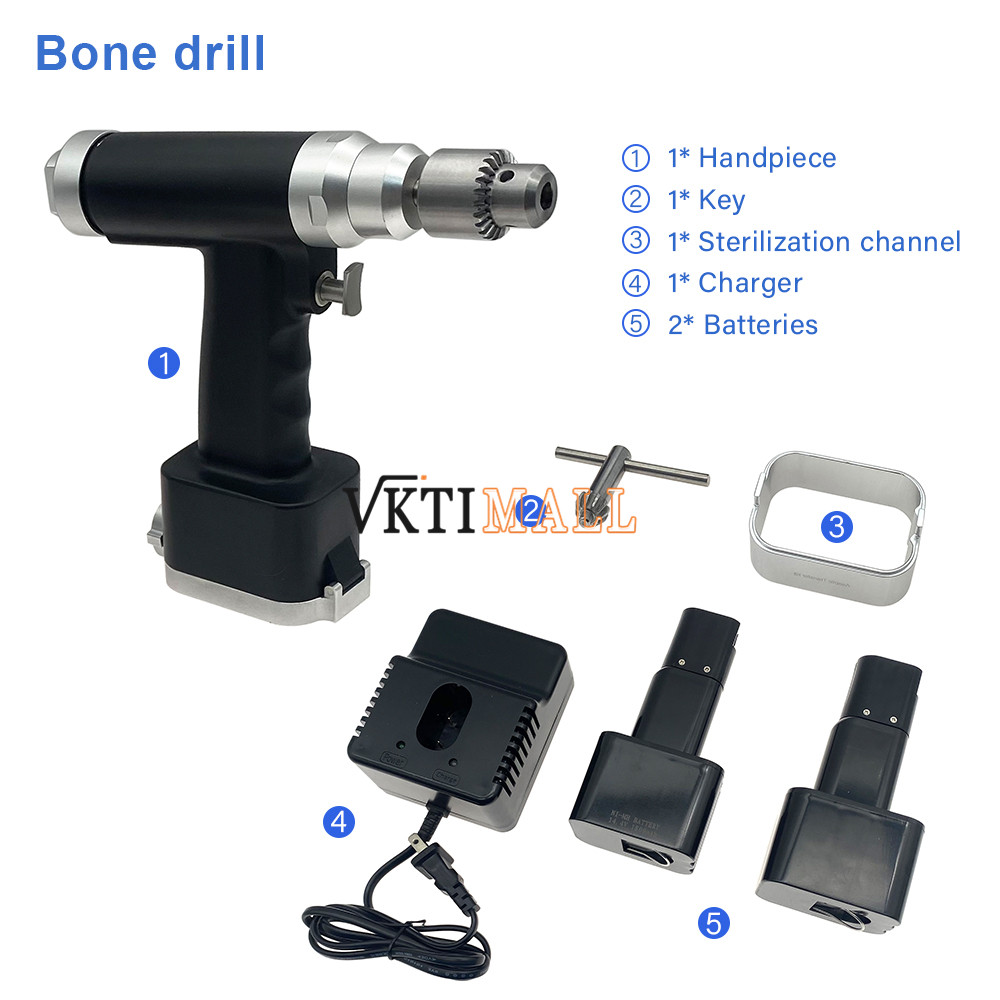

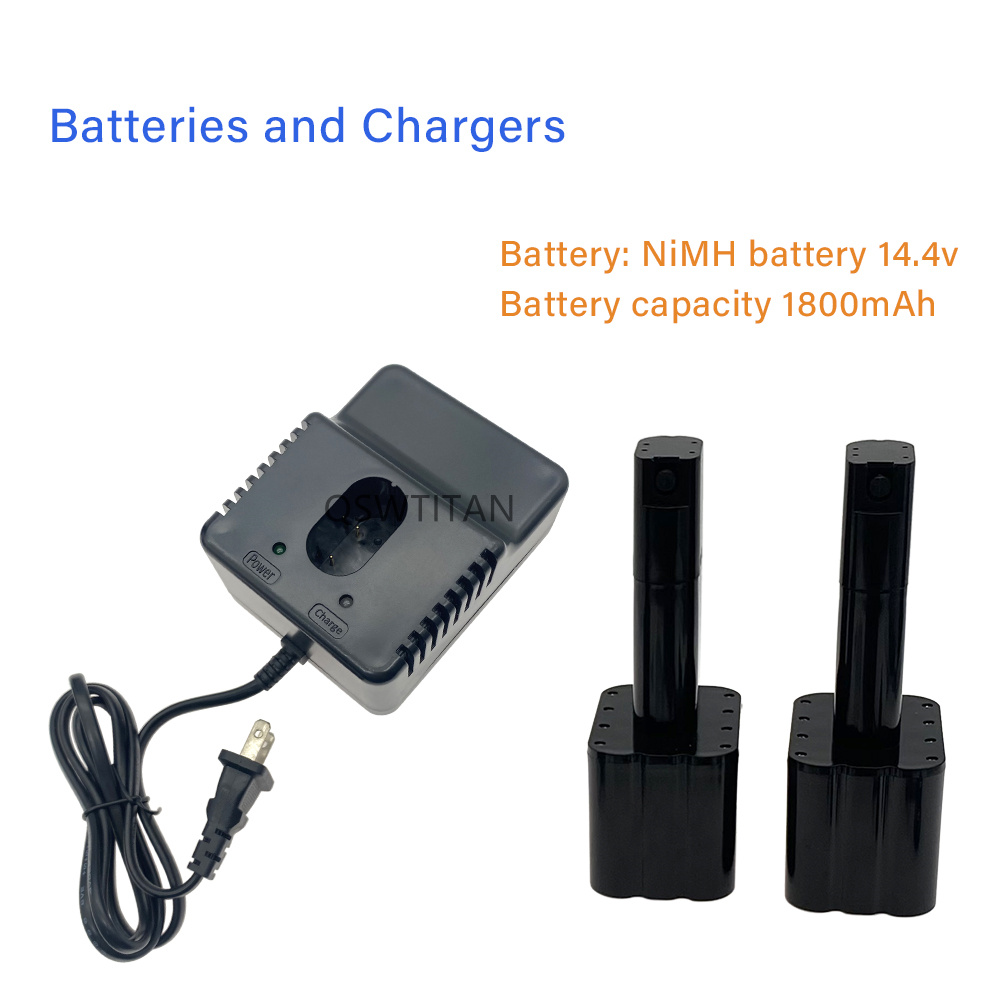

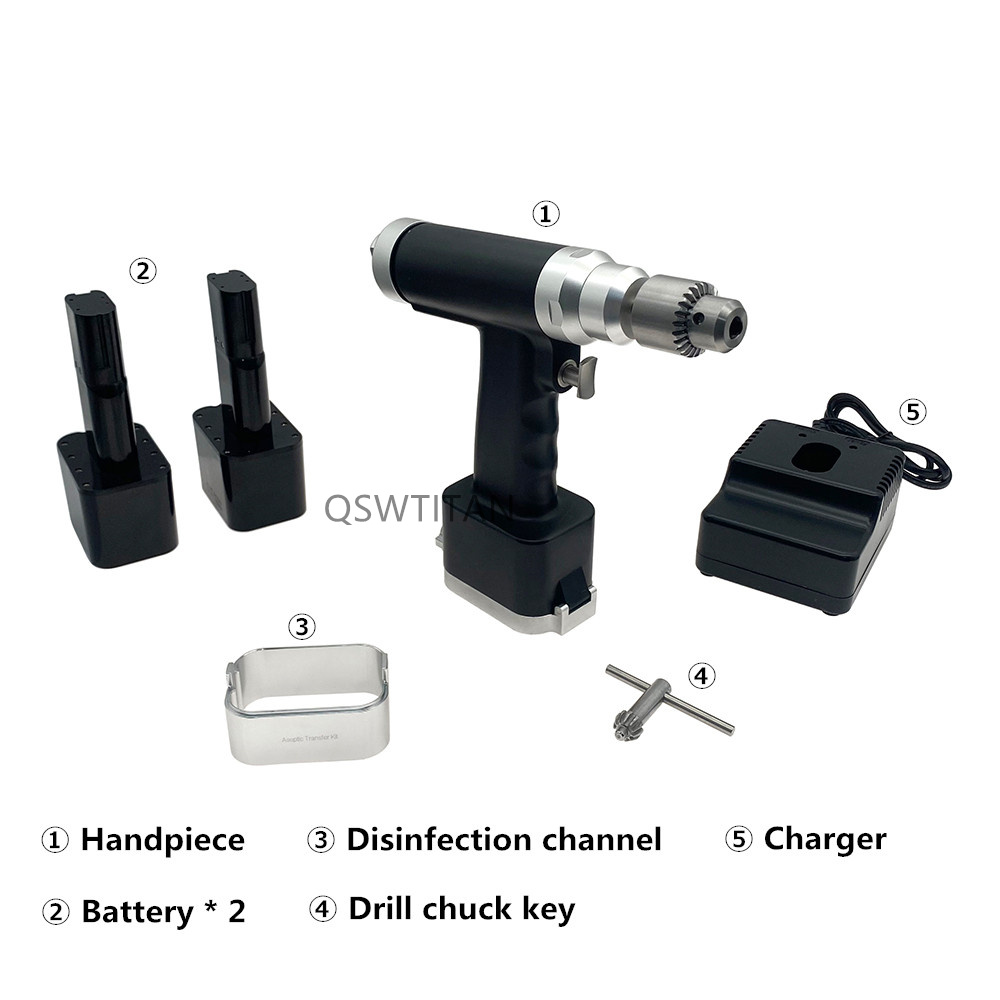

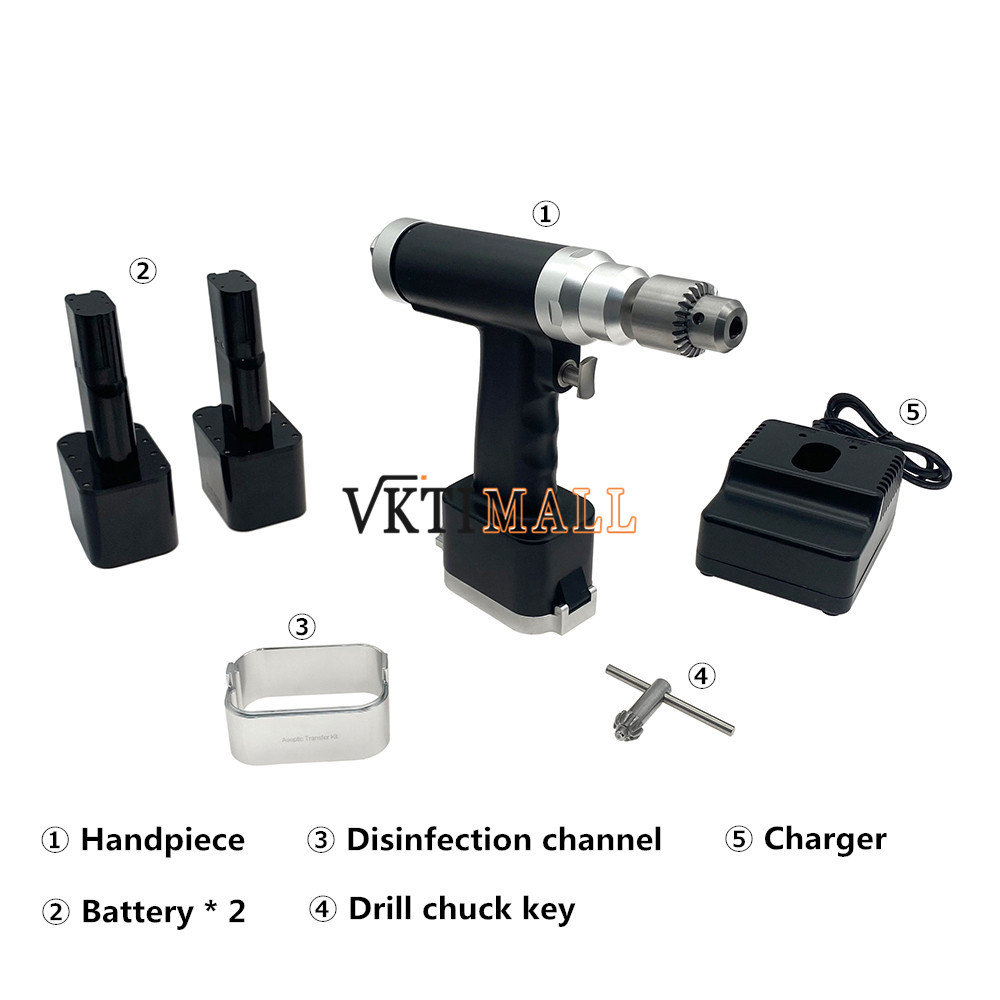

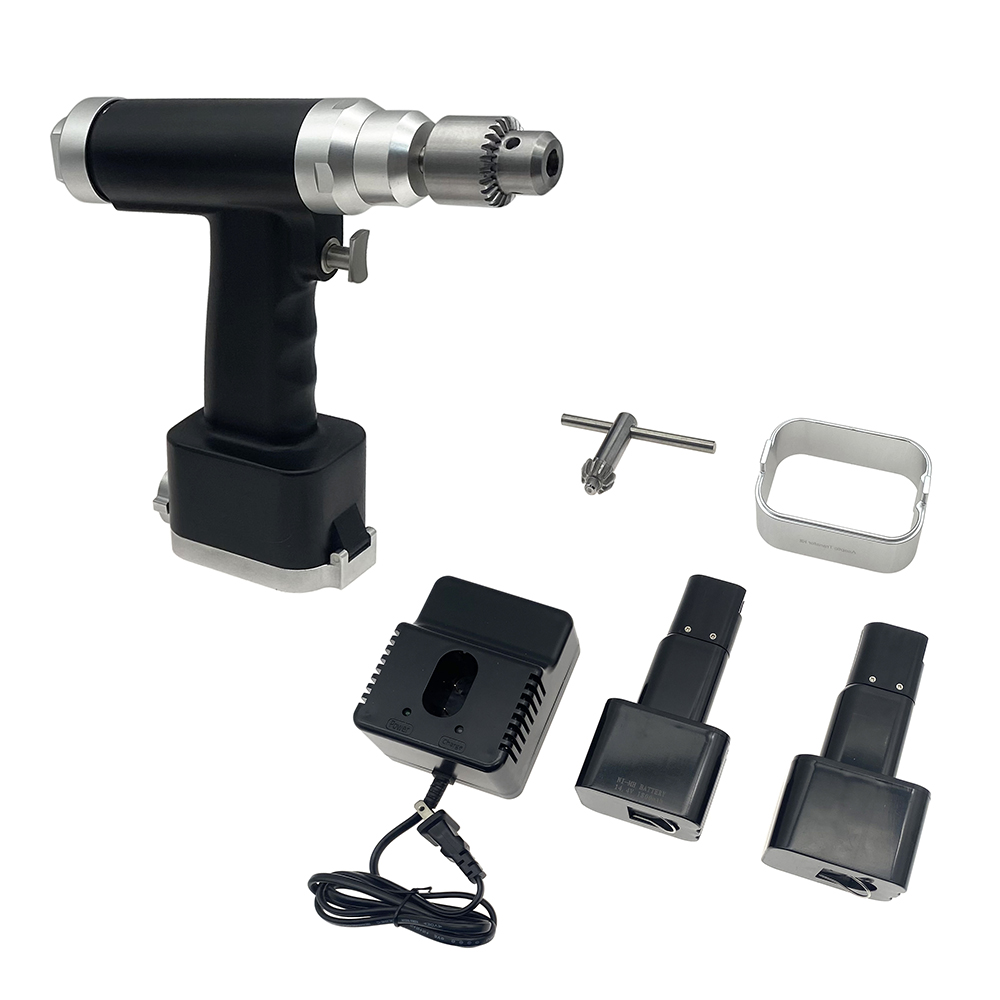

The system has an operating voltage of 14.4V with an 1800mAh battery capacity. The package includes 2 batteries, and each charging cycle requires about 2.5 to 3 hours.

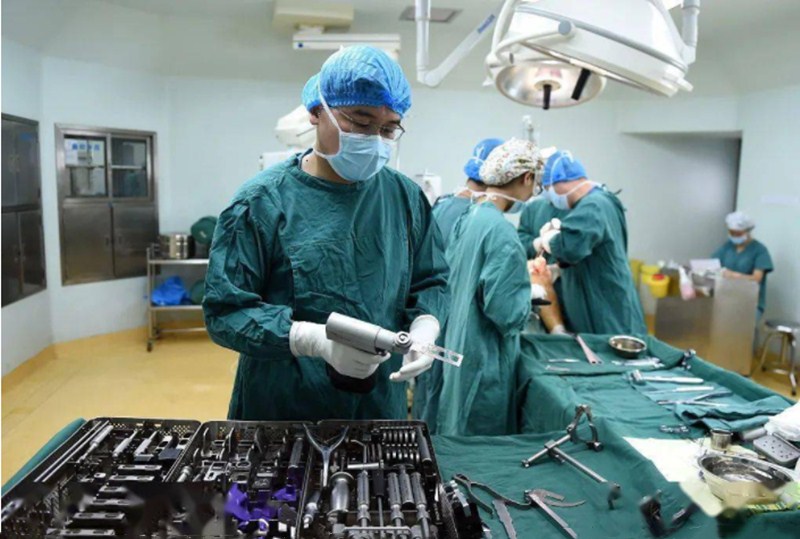

It is designed mainly for trauma surgery, especially for drilling, screwing, and fixing steel plates. It is highly suitable for both human trauma procedures and veterinary surgical operations.

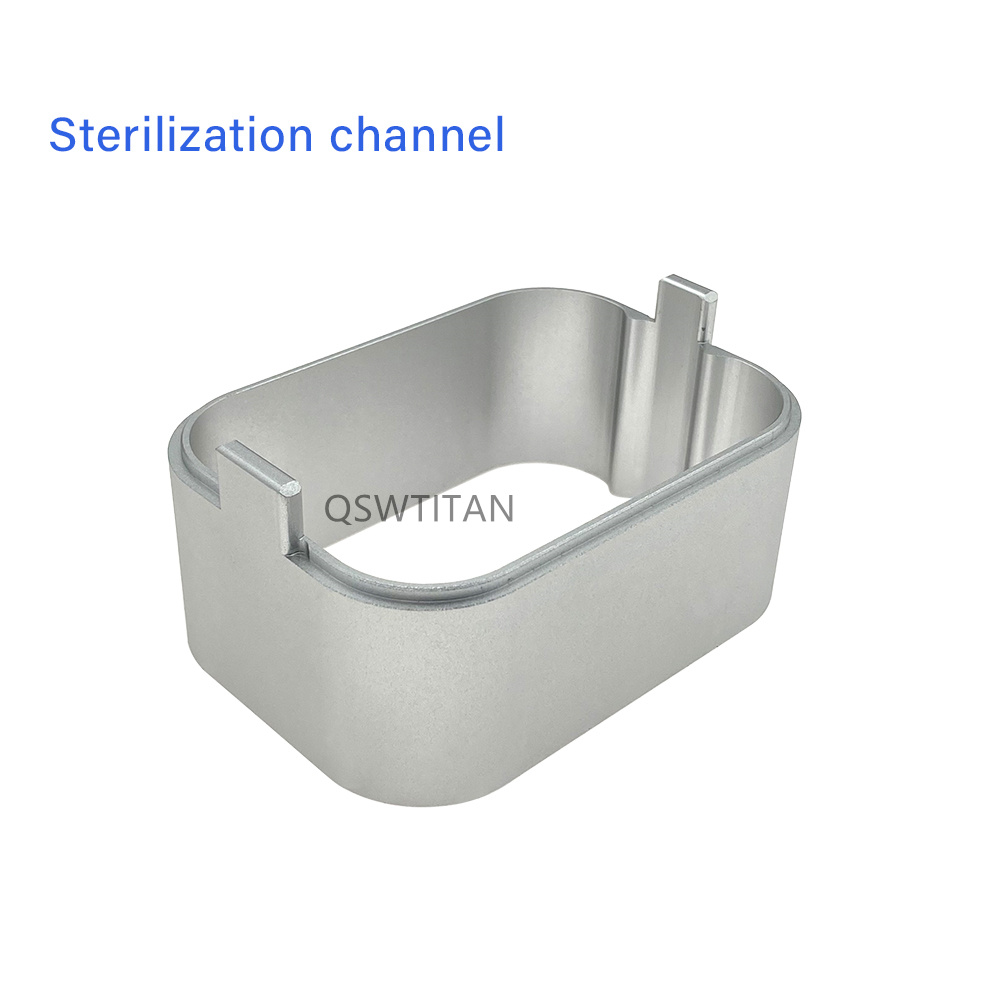

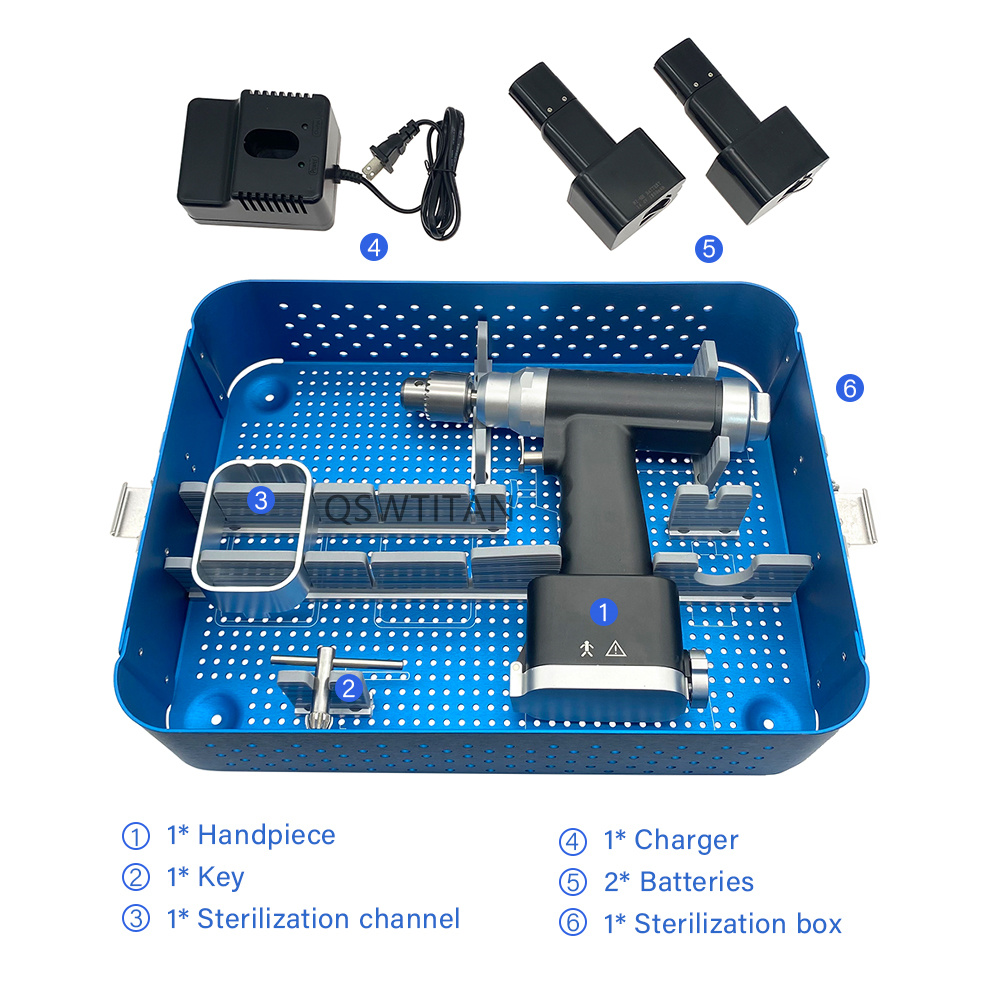

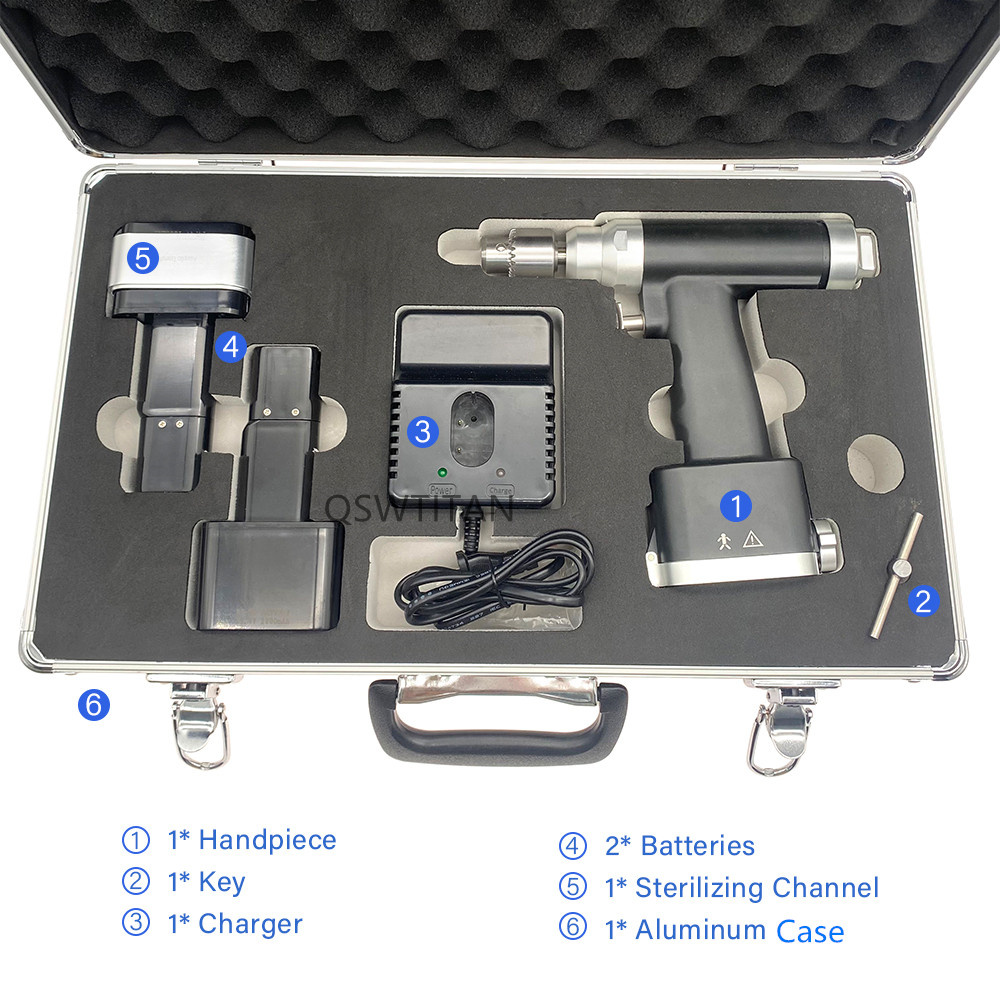

We provide two main types of packaging configurations: Type One comes with a durable Aluminum Box, and Type Two is equipped with a specialized Sterilization Case. You can choose based on your clinical requirements.
We offer a 1-year free warranty for the handpiece itself, ensuring that your device operates reliably, economically, and efficiently.
