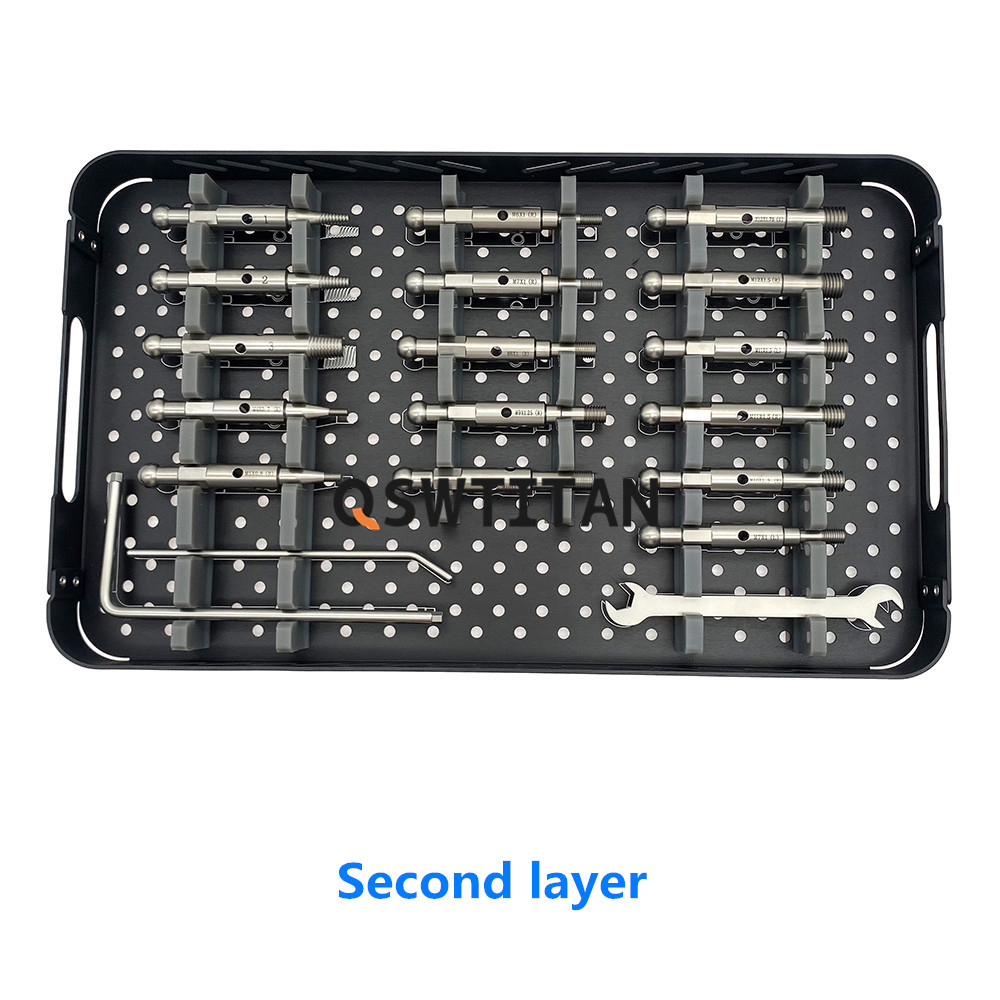

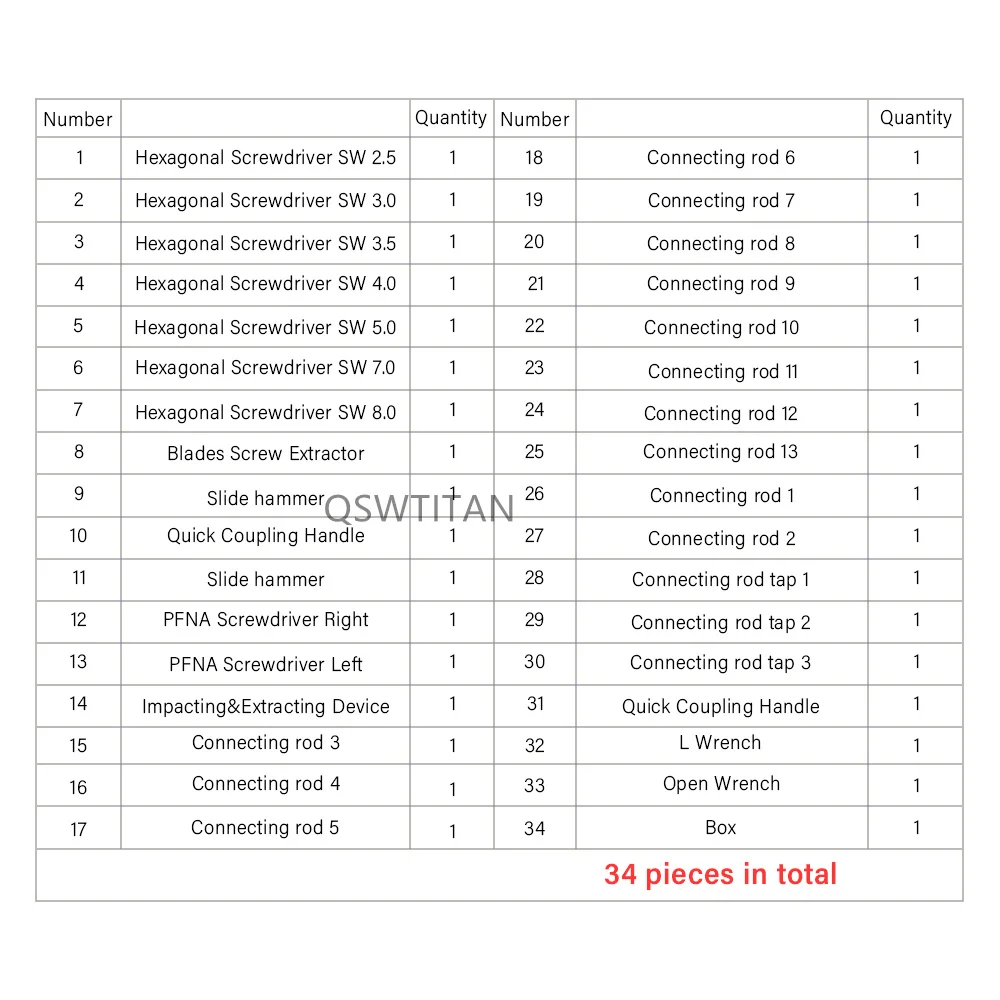

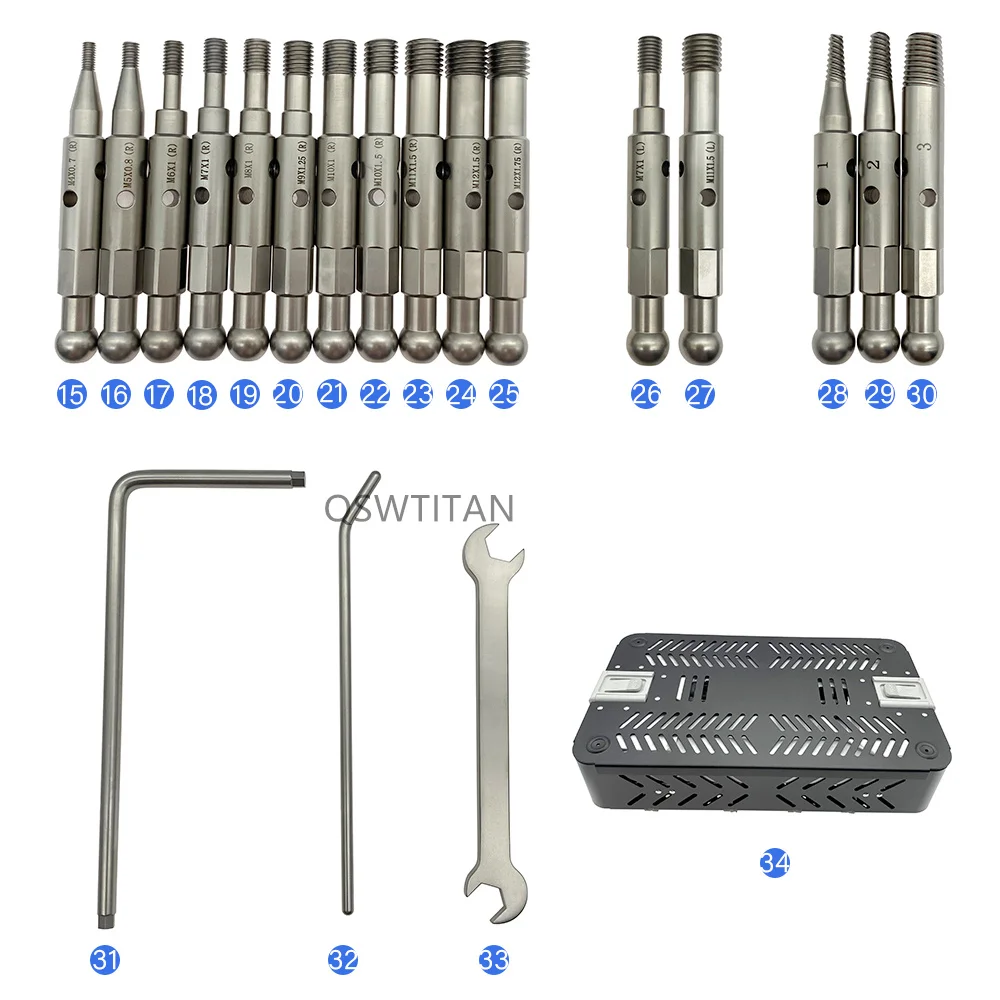

1. Connecting rod tap 1
2. Connecting rod tap 2
3. Connecting rod tap 3
4. Connecting rod 1
5. Connecting rod 2
6. Connecting rod 3
7. Connecting rod 4
8. Connecting rod 5
9. Connecting rod 6
10. Connecting rod 7
11. Connecting rod 8
12. Connecting rod 9
13. Connecting rod 10
14. Connecting rod 11
15. Connecting rod 12
16. Connecting rod 13

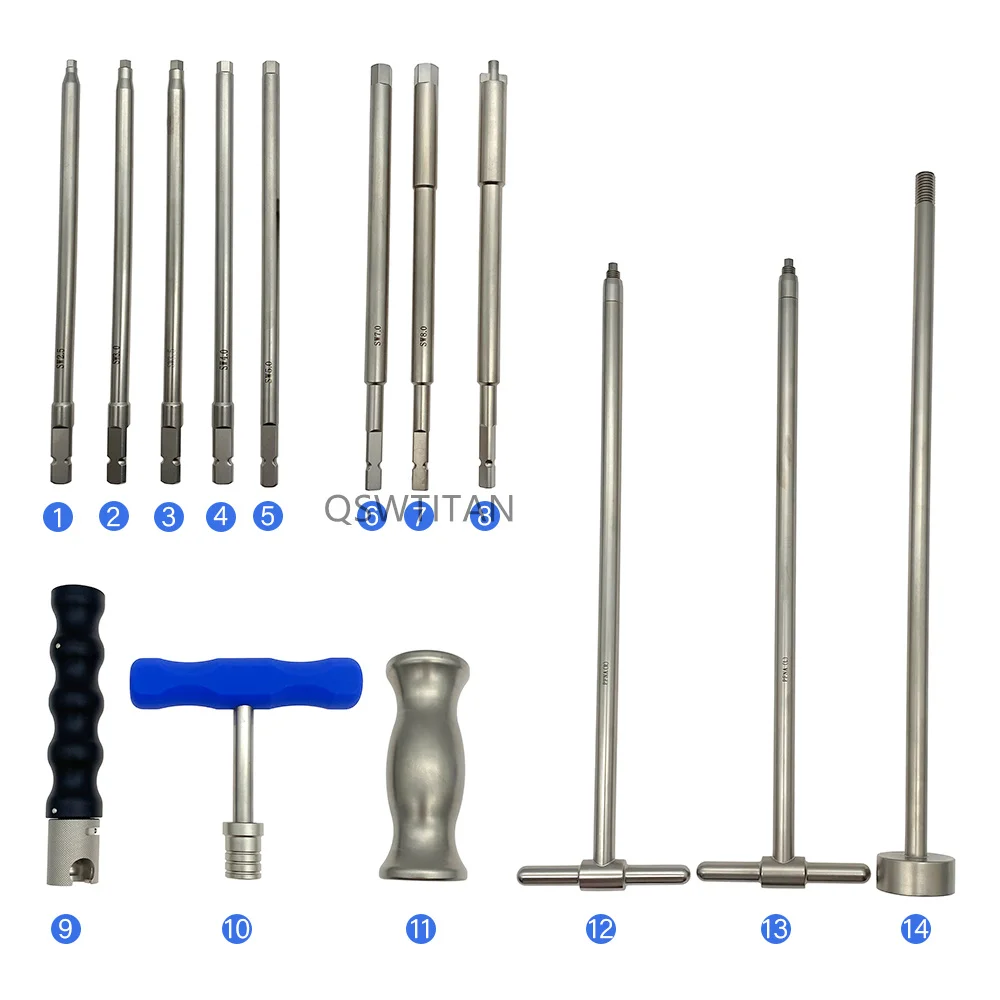

17. L Wrench
18. Open Wrench
19. Impacting & Extracting Device

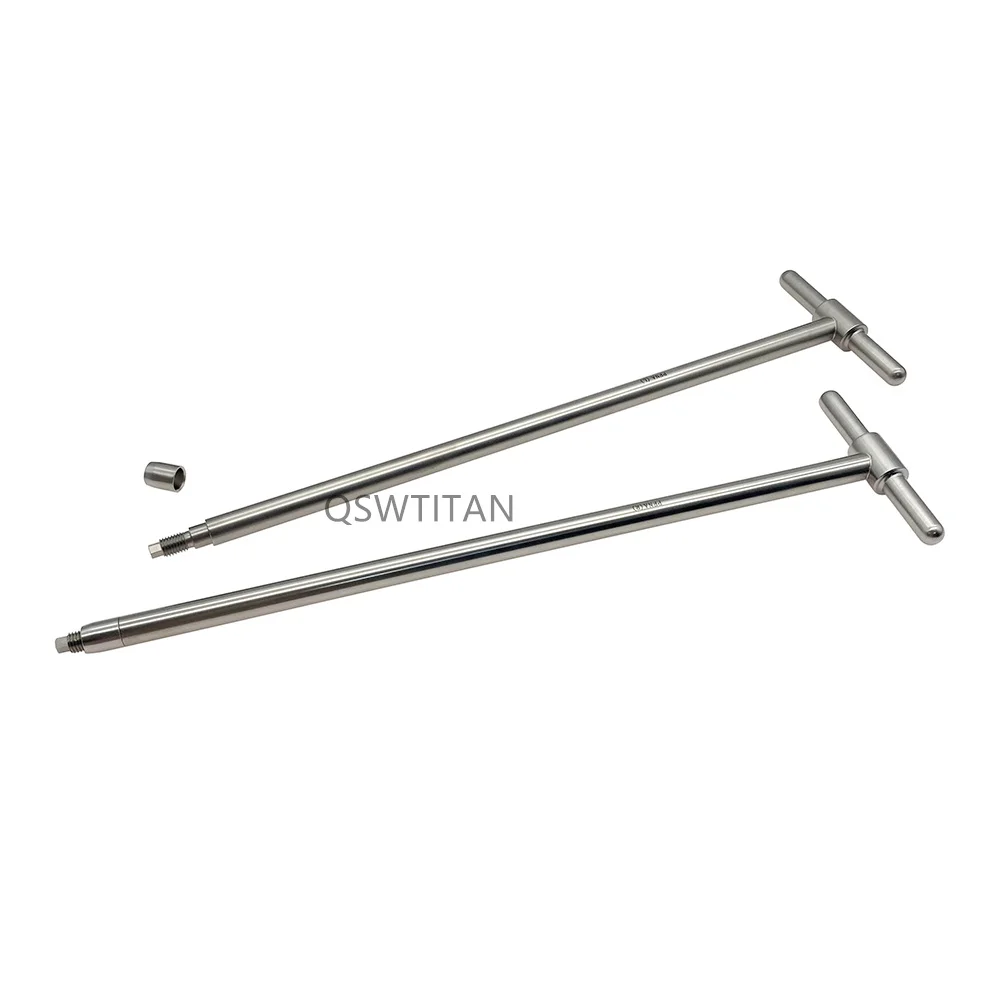

20. PFNA Screwdriver Left
21. PFNA Screwdriver Right

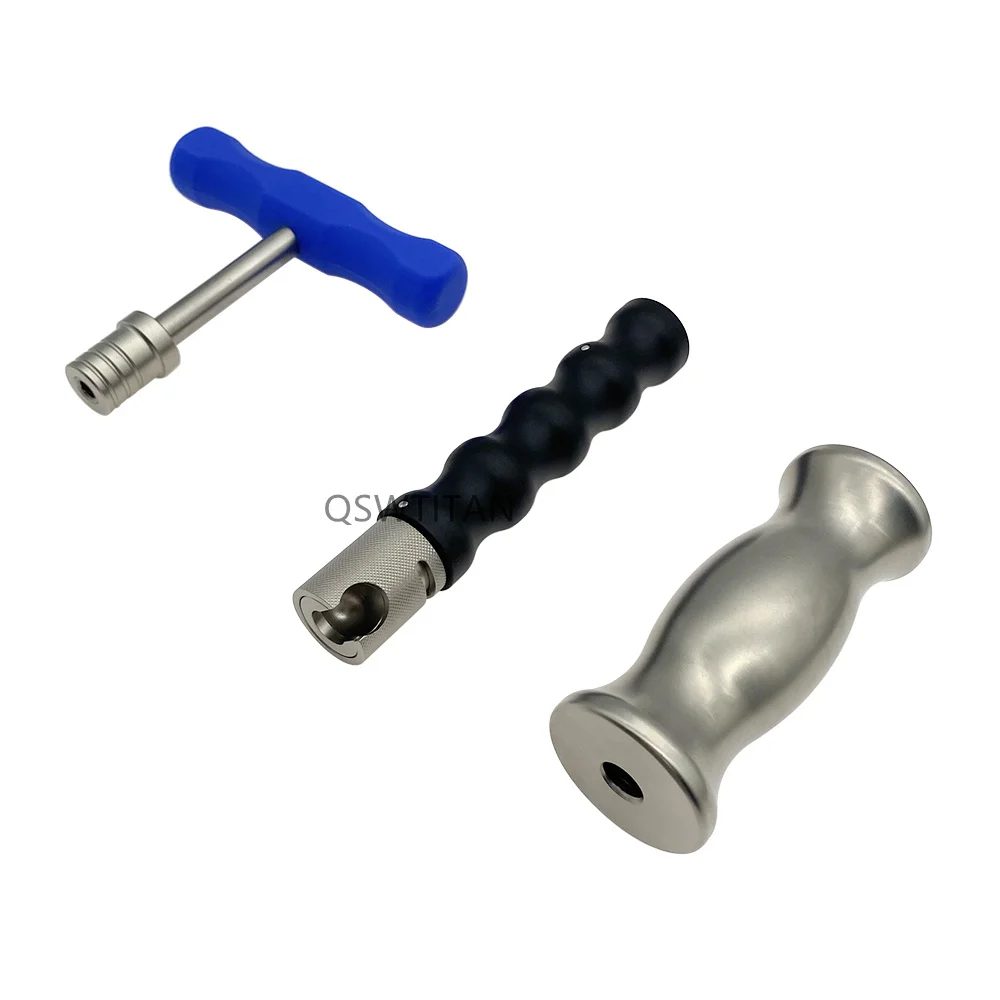

22. Slide hammer
23. Blades Screw Extractor

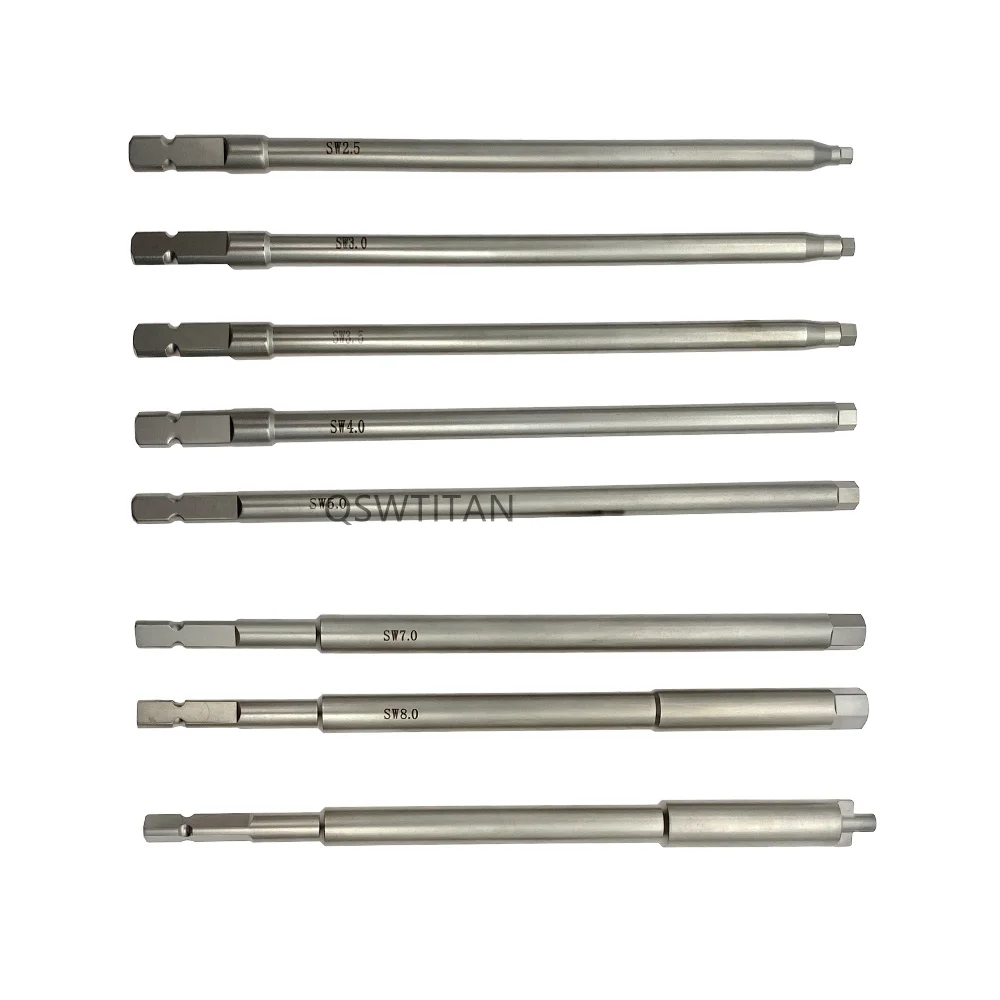

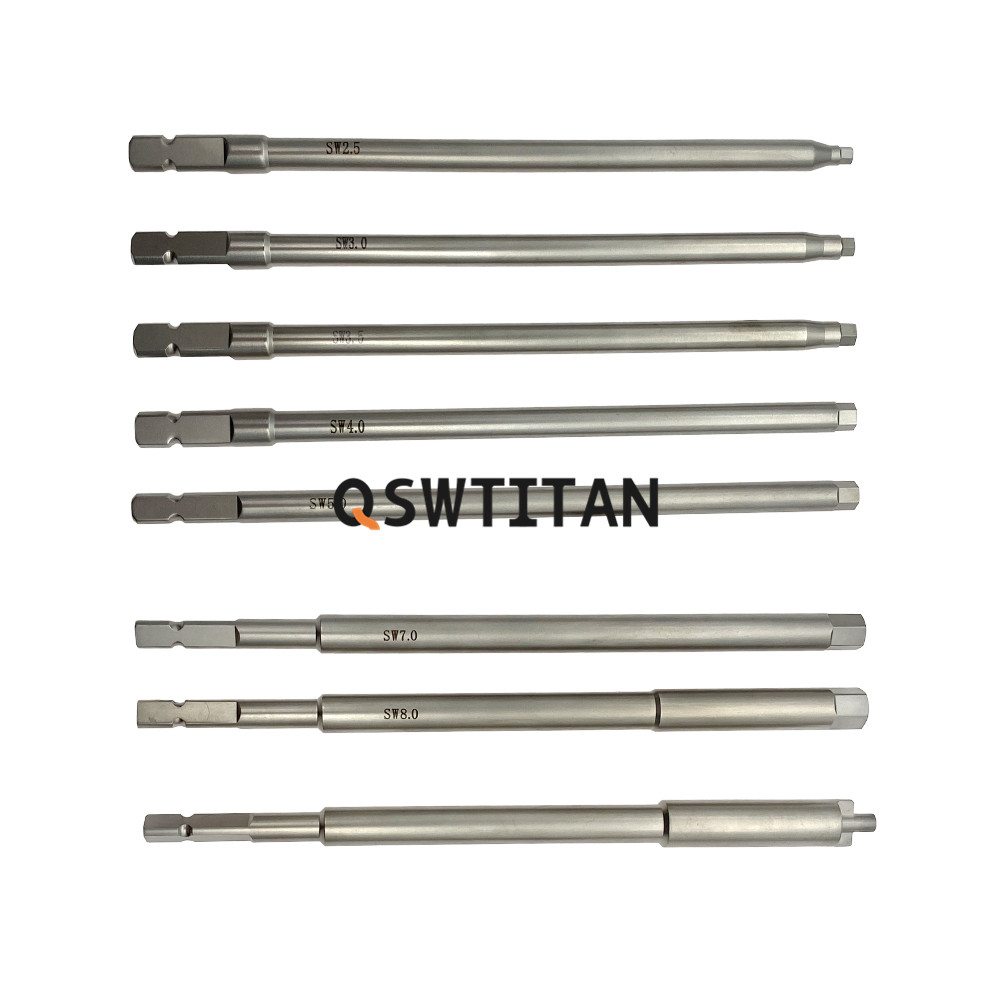

24. Hexagonal Screwdriver SW 7.0
25. Hexagonal Screwdriver SW 8.0
26. Quick Coupling Handle
27. Quick Coupling Handle
28. Hexagonal Screwdriver SW 2.5
29. Hexagonal Screwdriver SW 3.0
30. Hexagonal Screwdriver SW 3.5
31. Hexagonal Screwdriver SW 4.0
32. Hexagonal Screwdriver SW 5.0
33. Slide hammer
34. Box
Frequently Asked Questions
1. What is the Broken Screw Removal Instrument Set II used for?
This set is specifically designed for the surgical removal of broken intramedullary nails and associated screws in orthopedic procedures.
2. Does this set include extractors for various screw sizes?
Yes, the set includes a comprehensive range of connecting rods, extractors, and hexagonal screwdrivers (ranging from 2.5mm to 8.0mm) to accommodate different surgical needs.
3. Are the instruments in this set compatible with PFNA systems?
The set includes specialized PFNA screwdrivers (Left and Right) specifically designed for such applications, ensuring compatibility during removal procedures.
4. How should the instruments be maintained?
All stainless steel instruments should be cleaned, disinfected, and sterilized according to standard medical device protocols after every use to ensure longevity and safety.
5. What does the "Impact & Extracting Device" do?
The Impacting & Extracting Device is a critical component used to apply controlled force for the effective removal of jammed or broken hardware within the bone.

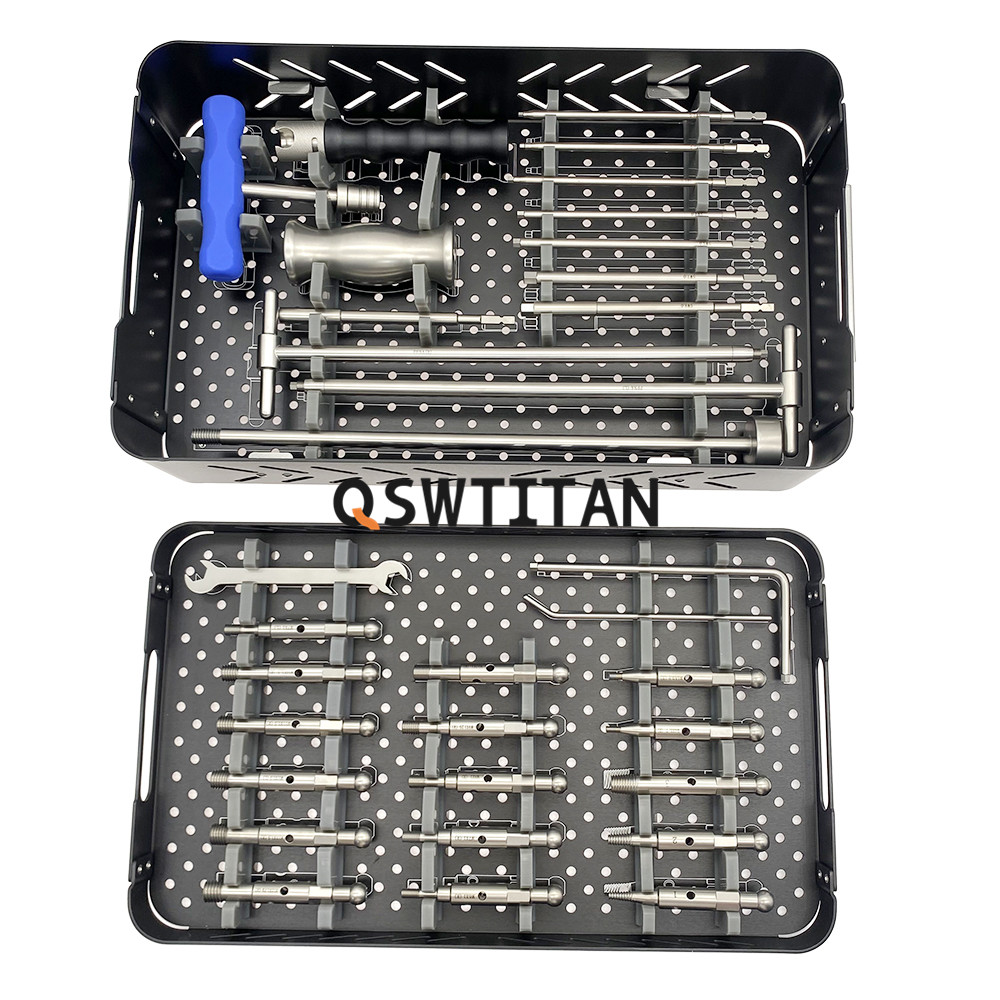

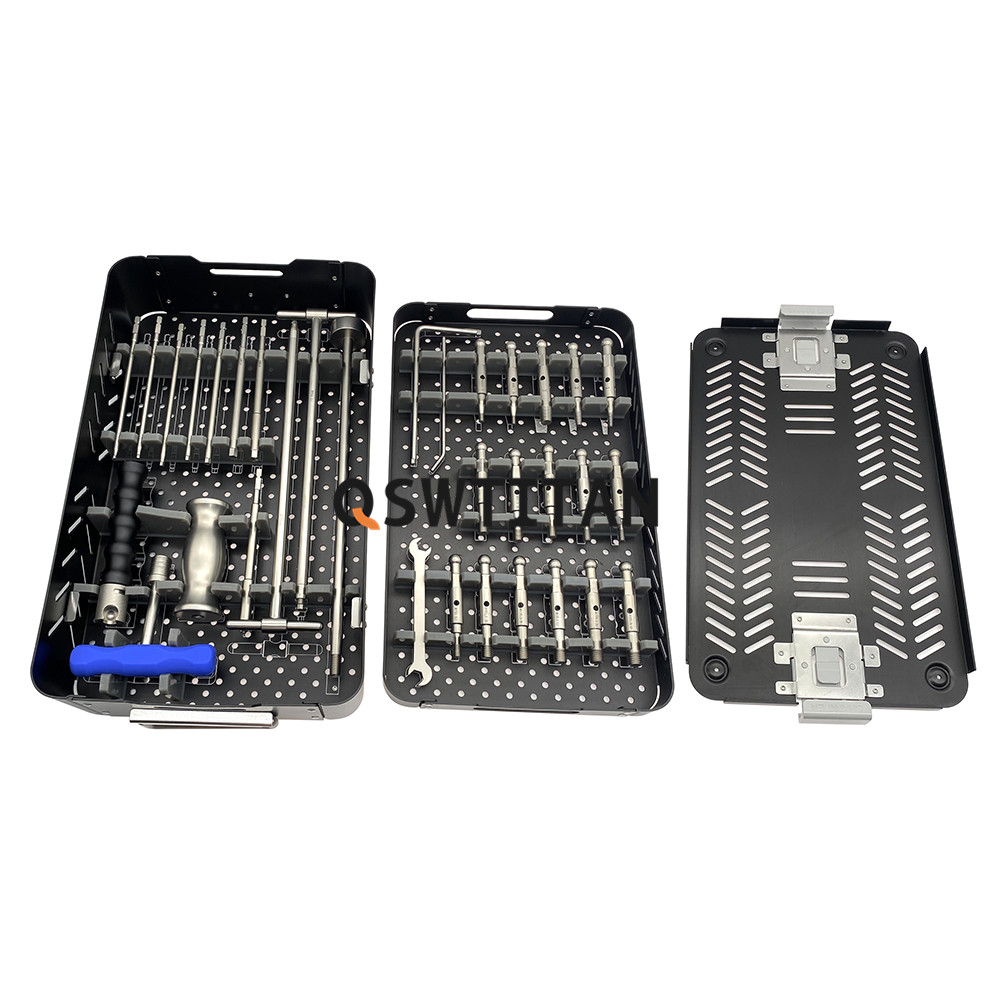

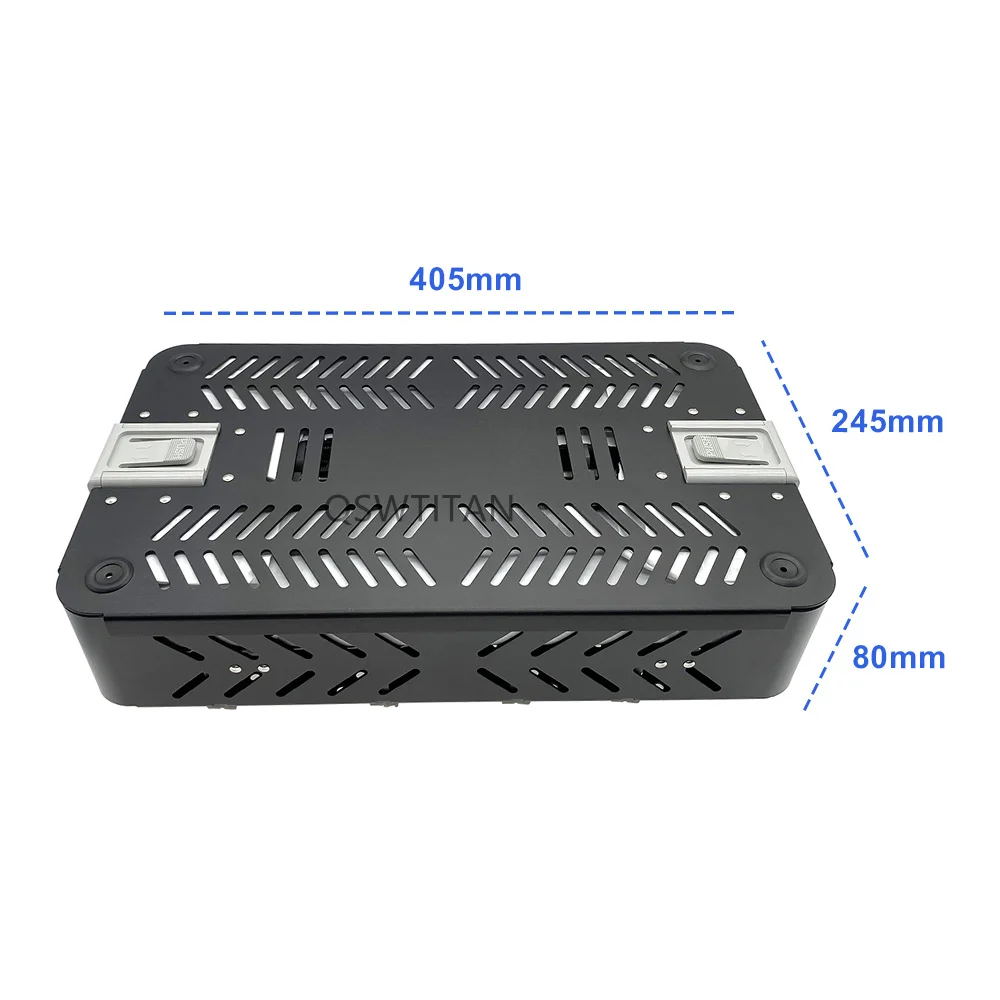

6. Is a storage case provided with the set?
Yes, the set includes a dedicated box to keep all 34 individual components organized and protected for sterile storage and transport.
