In modern orthopedic osteosynthesis, the Herbert Screw stands as a revolutionary milestone in headless compression technology. Designed specifically for small bone fractures, osteotomies, and arthrodesis, its unique dual-pitch thread design has redefined clinical outcomes.
Unlike traditional cortical or cancellous screws, the Herbert Screw features a headless design with two distinct threaded sections. The leading thread has a larger pitch than the trailing thread. As the screw is driven across a fracture line, the difference in pitch draws the bone fragments together, generating powerful, controlled interfragmentary compression without the need for a protruding screw head.
This headless profile is critical in intra-articular applications, such as scaphoid fractures or osteochondral fixations, where a standard screw head would damage articular cartilage or impede joint mobility.
Top-tier global exporters utilize medical-grade titanium alloy Ti6Al4V ELI (Extra Low Interstitial) conforming to ASTM F136 and ISO 5832-3 standards. This material offers an optimal balance of high fatigue strength, excellent biocompatibility, and a low modulus of elasticity that closely mimics human cortical bone, thereby reducing the risk of stress shielding.
Advanced surface treatments, such as Type II anodization or acid-etching, are frequently applied to enhance osseointegration and reduce bacterial adhesion, ensuring long-term implant stability.
Over the past decade, China has evolved from a high-volume manufacturer to a global epicenter of high-precision medical device engineering. Chinese factories now combine cost efficiencies with state-of-the-art technology to dominate the orthopedic export market.
The manufacturing of cannulated Herbert Screws requires extreme precision. Leading Chinese factories utilize imported multi-axis Swiss-type CNC lathes (such as Citizen or Star) to achieve tolerances within ±0.005mm. This ensures perfect concentricity of the central cannula, vital for smooth guide-wire insertion during minimally invasive surgeries.
From raw material sourcing with full chemical traceability to advanced surface finishing, cleanroom packaging (Class 10,000 / ISO 7), and ethylene oxide (EO) sterilization, Chinese industrial clusters offer an integrated ecosystem that significantly reduces lead times and production costs.
To cater to international markets, top Chinese exporters have aligned their quality management systems with global standards, securing CE (MDR), FDA 510(k), and MDSAP certifications, enabling seamless entry into European, North American, and Asia-Pacific healthcare networks.
As a premier representative of China's advanced medical manufacturing sector, HBM Medical Apparatus And Instruments Co., Ltd. exemplifies the integration of cutting-edge R&D, massive production capacity, and uncompromising quality control.
Founded in 2015, HBM Medical Apparatus And Instruments Co., Ltd. has established itself as a leading orthopedic medical equipment R&D, manufacturing, and operation enterprise in China. With a sales network covering the entire country and expanding rapidly across the globe, HBM has won the recognition of top-tier medical brands and clinical institutions.
HBM adheres to the development concept of technological, product, and service innovation. By gathering and integrating superior resources, HBM serves the great cause of human health under the guiding philosophy: "Integrate the Master, Health being achieved."
Operating from a massive 30,000+ square meter production site equipped with over 350 processing and testing instruments, HBM boasts 12 highly automated production lines. The company's R&D team consists of 31 senior engineers, including 1 Doctorate, 11 Postgraduates, and 17 Graduates, who successfully launched 25 new products in the last year alone.
HBM's robust quality management system is certified under ISO 13485, ISO 14001, and the Medical Device Single Audit Program (MDSAP), ensuring full traceability of raw materials and 100% product inspection compliance.
| Operational Parameter | HBM Medical Capabilities & Standards |
|---|---|
| Establishment & Experience | Founded in 2015; 10 years of industry and export expertise. |
| Certifications Held | ISO 13485 (04723Q10000765), MDSAP (C730178), CE (EPT 0477.MDR.25/5905 & EPT 0477.MDR.25/5973) |
| Production Capacity | 12 active production lines, 120+ high-precision CNC machines. |
| Quality Assurance (QA/QC) | 36 dedicated inspectors; 100% raw material traceability; comprehensive testing protocols. |
| Customization Options | OEM/ODM support, sample processing, graphic processing, customized on-demand. |
| Target Markets | Domestic (80%), Eastern Europe (5%), Southeast Asia (5%), and expanding global footprints. |
Herbert Screws are not standalone components; they are part of comprehensive anatomical fixation systems designed to solve complex orthopedic challenges.
The scaphoid bone has a notorious retrograde blood supply. Stable, rigid internal fixation using a cannulated Herbert Screw is the gold standard for preventing avascular necrosis and promoting rapid bone healing through compression.
For intra-articular shear fractures of the humeral capitellum, radial head, or femoral condyles, the headless design allows the screw to be countersunk completely beneath the articular cartilage, preventing joint damage.
In rheumatoid arthritis or severe osteoarthritis of the hand and foot, Herbert Screws provide the high-stability compression required to achieve successful fusion in distal interphalangeal (DIP) joints.
When auditing Herbert Screw factories and exporters, procurement managers must evaluate technical capability, regulatory compliance, and supply chain resilience. Use this E-E-A-T aligned checklist to secure your supply chain.
Ensure the manufacturer provides Mill Test Certificates (MTC) for every batch of titanium alloy, confirming compliance with ASTM F136 or ISO 5832-3. Traceability must extend from the raw bar stock to the finished, packaged sterile screw.
For sterile-packaged implants, the final cleaning, packaging, and sealing must occur within an ISO Class 7 (Class 10,000) cleanroom. Ask for routine bioburden testing reports and sterilization validation records (ISO 11135 for EO sterilization).
Verify that the factory uses automated optical inspection (AOI) systems and coordinate measuring machines (CMM) to check thread pitch, cannula concentricity, and drive feature geometry. A minor deviation in the hexalobular drive can lead to screw stripping during surgery.
A reputable exporter must present valid ISO 13485 certificates. If exporting to the EU, CE certificates under the Medical Device Regulation (MDR 2017/745) are mandatory. For the US, verify their FDA 510(k) clearance numbers.
The orthopedic implant industry is undergoing rapid technological shifts. Leading factories are investing in next-generation materials and smart manufacturing technologies to stay ahead of global demands.
Research is shifting toward magnesium alloys and bioabsorbable polymers (like PLLA/PLGA) that provide temporary mechanical stability and gradually degrade as the bone heals, eliminating the need for secondary implant removal surgeries.
Additive manufacturing allows for the creation of customized, highly porous screw shafts that encourage rapid bone ingrowth, merging the concepts of mechanical fixation and biological integration.
The application of silver nanoparticles, hydroxyapatite (HA), or drug-eluting coatings onto the titanium surface is being developed to actively combat surgical site infections and accelerate osteogenesis.
Get authoritative answers to the most common technical, regulatory, and logistics questions regarding Herbert Screw manufacturing and global sourcing.

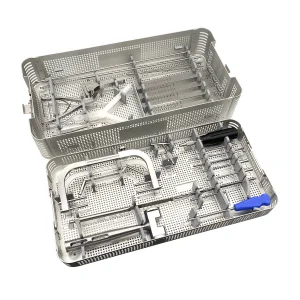

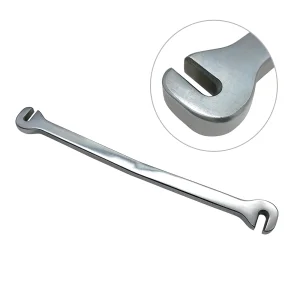

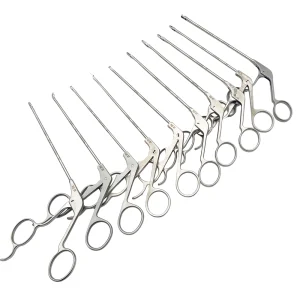

Review our comprehensive range of trauma plates, surgical power tools, and specialized instrument kits engineered for clinical precision.
